1 35-2717 Agitator H Appelez-nous -
1 35-3580 Agitator M Appelez-nous -
2 25-7947 Screw Shoulder H Appelez-nous -
3 WP22002933 Screw   (Replaces: 25-7953) H Special Order $ 6.91

4 WPW10309247 Screw, Agitator Retention   (Replaces: 25-7948) H Special Order $ 32.57

5 35-2980 Gasket H Appelez-nous -
5 35-3685 Gasket, Basket To Centerpost M Special Order $ 36.70

6 35-2979 Gasket, Tub/hsg (seal) H Appelez-nous -
6 35-3686 Gasket, Tub To Housing M Special Order $ 5.85

7 35-3014 Gasket & Reinf. Plate Assy H Appelez-nous -
8 25-7783 Screw H Appelez-nous -
9 35-2328 Seal, Tub Top H Special Order $ 49.43

10 35-2733 Cap, Agitator H Appelez-nous -
11 35-3016 Basket Assy H Appelez-nous -
12 35-2978 Seal, Tub/housing H Special Order $ 5.85

13 35-2952 Tub Assy H Appelez-nous -
13 35-3700 Tub Assembly (plastic) M Special Order $ 236.85

14 35-2034 Top, Tub H Appelez-nous -
14 35-2262 Shield, Tub Top H Appelez-nous -
14 35-3578 Top, Tub M Appelez-nous -
15 35-2550 Dispenser, Rinse H Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

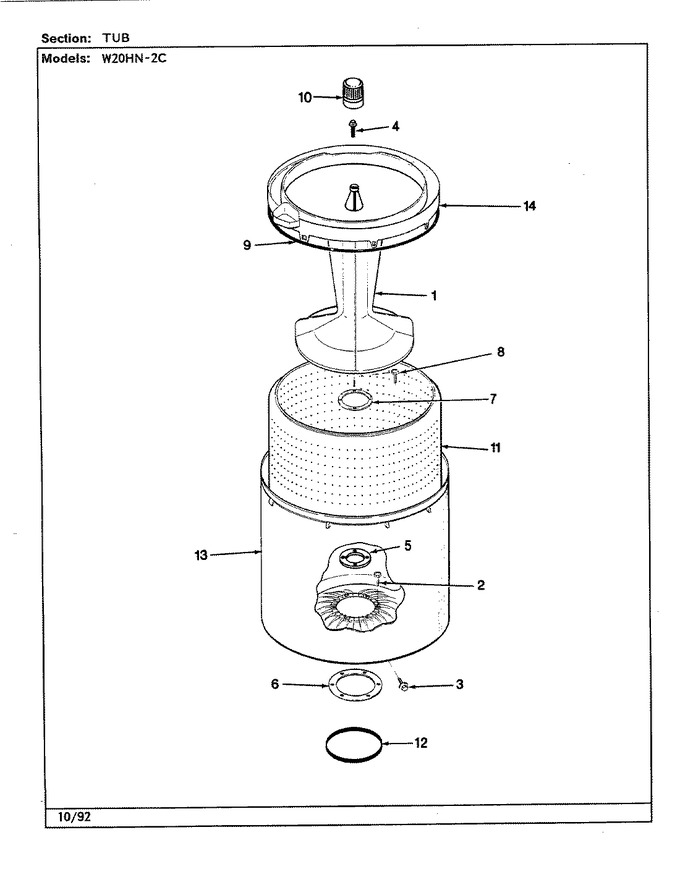

Diagram for W20HN2C
