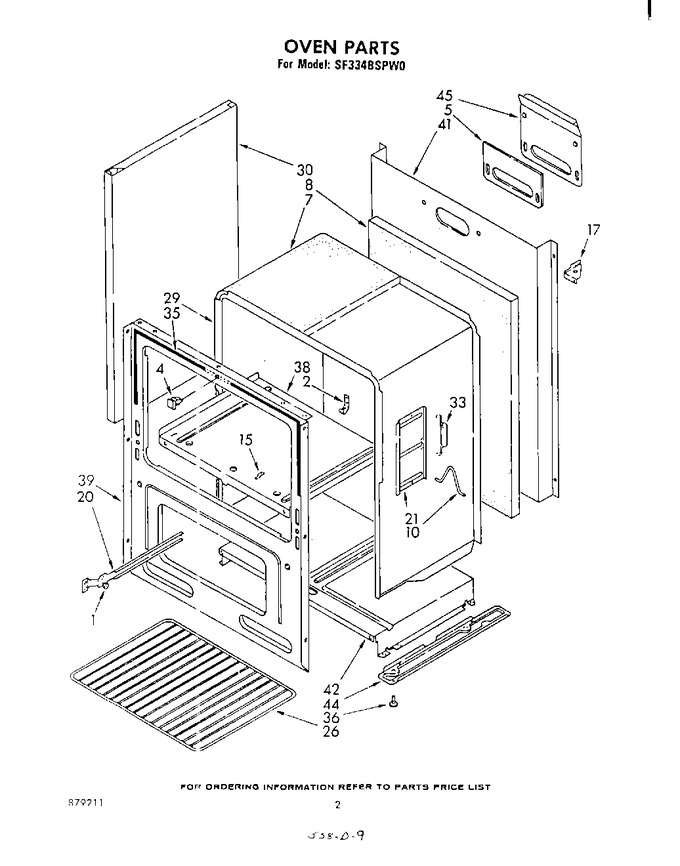

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	878077		Bearing, Roller (4)		Appelez-nous	-
2	98005642		Clip, Thermostat Bulb   (Replaces: 878993)			Immediately	$ 74.64
4	878084		Clip, Door Seal		Appelez-nous	-
5	878088		Gasket, Vent Deflector		Appelez-nous	-
7	WPW10208653		Insulation, Oven Wrap   (Replaces: 878092)			Immediately	$ 49.92
8	WPW10208653		Insulation, Oven Back   (Replaces: 878093)			Immediately	$ 49.92
10	878094		Link, Oven Door Spring (2)		Appelez-nous	-
15	878107		Clip, Oven Bottom Plate (2)		Appelez-nous	-
17	878717		Bracket, Corner Support (right Side)		Appelez-nous	-
17	878718		Bracket, Corner Support (left Side)		Appelez-nous	-
20	878113		Track, Broiler (right Side)		Appelez-nous	-
20	878114		Track, Broiler (left Side)		Appelez-nous	-
21	878117		Cover, Hinge (2)		Appelez-nous	-
26	878123		Rack, Oven (2)		Appelez-nous	-
30	878129		Panel, End (2) (almond)		Appelez-nous	-
30	878128		Panel, End (2) (white)		Appelez-nous	-
30	879081		Panel, End (2) (toast)		Appelez-nous	-
30	879082		Panel, End (2) (platinum)		Appelez-nous	-
33	878459		Spring, Oven Door (2)		Appelez-nous	-
35	878003		Seal, Oven Door (top)		Appelez-nous	-
35	878004		Seal, Oven Door (side (2))		Appelez-nous	-
36	878417		Screw, Leveling (4)		Appelez-nous	-
38	879039		Plate, Oven Bottom		Appelez-nous	-
39	879053		Front, Main		Appelez-nous	-
41	879015		Back, Main		Appelez-nous	-
42	878180		Bottom, Main		Appelez-nous	-
44	878182		Runner, Base (right Side)		Appelez-nous	-
44	878181		Runner, Base (left Side)		Appelez-nous	-
45	878477		Deflector, Vent		Appelez-nous	-
