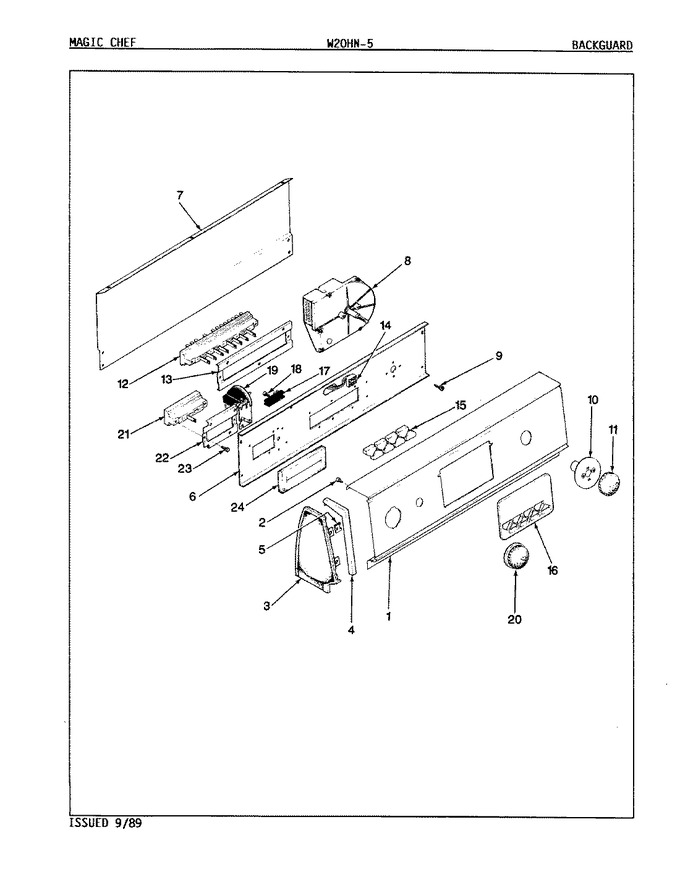

01 - Base & Drive
02 - Control Panel
03 - Transmission
04 - Tub
05 - Water Carrying & Pump Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 35-2166 | Control Panel |
|
- | |||||
| 2 | 25-7852 | Speedclip, Rr Shld To End Cap |
|
- | |||||
| 2 | WP33002917 | Screw (Replaces: 25-7435) |
|
Immediately | $ 6.90 | ||||
| 3 | WP33002917 | Screw (Replaces: 25-7435) |
|
Immediately | $ 6.90 | ||||
| 3 | 34-9487 | Plate, Reinforcement |
|
- | |||||
| 3 | 53-0264 | Rh Endcap |
|
- | |||||
| 3 | 25-7702 | Speedclip, End Cap To Ctrl Pnl |
|
- | |||||
| 3 | 53-0265 | Lh Endcap |
|
- | |||||
| 3 | 25-7851 | Speedclip, End Cap To Top |
|
- | |||||
| 3 | 25-7852 | Speedclip, Rr Shld To End Cap |
|
- | |||||
| 3 | 25-7649 | Screw |
|
- | |||||
| 3 | 25-7697 | Screw |
|
- | |||||
| 4 | 25-7760 | Screw |
|
- | |||||
| 4 | 53-0277 | Trim, End Cap (rt) |
|
- | |||||
| 4 | 53-0278 | Trim, End Cap (lt) |
|
- | |||||
| 5 | WP90767 | Screw (Replaces: 25-3092) |
|
Immediately | $ 7.04 | ||||
| 5 | 25-7702 | Speedclip, End Cap To Ctrl Pnl |
|
- | |||||
| 6 | 35-0686-1 | Control Shield |
|
- | |||||
| 7 | 25-7583 | Plastic Nut |
|
- | |||||
| 7 | WP12990527 | Screw, Sems (Replaces: 25-3457) |
|
Immediately | $ 7.15 | ||||
| 7 | 53-0268 | Rear Shield |
|
- | |||||
| 7 | WP90767 | Screw (Replaces: 25-3092) |
|
Immediately | $ 7.04 | ||||
| 8 | 35-2748CP | Timer (Replaces: 35-2211) |
|
- | |||||
| 9 | 25-0205 | Screw |
|
- | |||||
| 10 | 35-2254 | Skirt & Ring Assy |
|
- | |||||
| 11 | 35-2187 | Knob, Timer |
|
- | |||||
| 12 | 35-2198 | Switch |
|
- | |||||
| 13 | WP90767 | Screw (Replaces: 25-3092) |
|
Immediately | $ 7.04 | ||||
| 13 | 33-6623 | Bracket |
|
- | |||||
| 14 | 35-0691-04 | Signal Light |
|
- | |||||
| 14 | 35-0691-05 | Light Assy |
|
- | |||||
| 14 | 35-0691-01 | Signal Light |
|
- | |||||
| 14 | 35-0691-06 | Light Assy |
|
- | |||||
| 15 | 35-2163-07 | Pushbutton |
|
- | |||||
| 15 | 35-2163-06 | Pushbutton |
|
- | |||||
| 15 | 35-2163-05 | Pushbutton |
|
- | |||||
| 15 | 35-2163-04 | Pushbutton |
|
- | |||||
| 15 | 35-2163-03 | Pushbutton |
|
- | |||||
| 15 | 35-2163-02 | Pushbutton |
|
- | |||||
| 15 | 35-2163-01 | Pushbutton |
|
- | |||||
| 15 | 35-2163-08 | Pushbutton |
|
- | |||||
| 16 | 35-0690 | Lens |
|
- | |||||
| 16 | 25-7882 | Palnut |
|
- | |||||
| 16 | 35-2164 | Lens |
|
- | |||||
| 16 | 35-0685 | Pb Bezel |
|
- | |||||
| 17 | 35-2257 | Terminal Block |
|
- | |||||
| 18 | 25-7649 | Screw |
|
- | |||||
| 19 | WP90767 | Screw (Replaces: 25-3092) |
|
Immediately | $ 7.04 | ||||
| 19 | WP21001554 | Pressure Switch (Replaces: 35-2145) |
|
$ 143.59 | |||||
| 20 | 35-2475 | Selector Knob |
|
- | |||||
| 21 | 35-0688 | Pb Switch |
|
- | |||||
| 22 | 33-6621 | Bracket, Switch |
|
- | |||||
| 23 | 25-7712 | Screw |
|
- | |||||
| 23 | WP90767 | Screw (Replaces: 25-3092) |
|
Immediately | $ 7.04 | ||||
| 24 | 33-8541 | Switch Pad |
|
- | |||||
| 24 | 35-0872 | Manual, Use & Care |
|
- |
