Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 25-7702 Speedclip, End Cap To Ctrl Pnl A Appelez-nous -
1 25-7649 Screw A Appelez-nous -
1 35-2849 Control Panel A Appelez-nous -
2 35-2487 Cap, End (rt) A Appelez-nous -
2 35-2488 Cap, End (lt) A Appelez-nous -
3 WP33002917 Screw   (Replaces: 25-7435) A In-Stock Immediately $ 6.90

3 25-7852 Speedclip, Rr Shld To End Cap A Appelez-nous -
4 53-0278 Trim, End Cap (lt) A Appelez-nous -
4 53-0277 Trim, End Cap (rt) A Appelez-nous -
5 25-7760 Screw A Appelez-nous -
6 25-7697 Screw A Appelez-nous -
6 25-7851 Speedclip, End Cap To Top A Appelez-nous -
6 34-9487 Plate, Reinforcement A Appelez-nous -
7 25-7702 Speedclip, End Cap To Ctrl Pnl A Appelez-nous -
8 WP90767 Screw   (Replaces: 25-3092) A In-Stock Immediately $ 7.04

9 53-1677 Control Shield A Appelez-nous -
10 WP90767 Screw   (Replaces: 25-3092) A In-Stock Immediately $ 7.04

10 35-2688 Shield, Control Panel (rear) A Appelez-nous -
10 WP12990527 Screw, Sems   (Replaces: 25-3457) A In-Stock Immediately $ 7.15

10 25-7583 Plastic Nut A Appelez-nous -
11 35-2845 Timer A Special Order $ 197.98

12 25-0205 Screw A Appelez-nous -
13 35-2254 Skirt & Ring Assy A Appelez-nous -
14 35-2486 Timer Knob A Appelez-nous -
15 35-2836 Switch P.b. 8pos A Appelez-nous -
16 WP90767 Screw   (Replaces: 25-3092) A In-Stock Immediately $ 7.04

16 33-6620 Bracket A Appelez-nous -
17 33-8540 Switch Pad A Appelez-nous -
18 WP21001554 Switch, Pressure   (Replaces: 35-3283) B Special Order $ 143.59

18 WP90767 Screw   (Replaces: 25-3092) A In-Stock Immediately $ 7.04

18 WP21001554 Switch Pressure   (Replaces: 35-2801) A Special Order $ 143.59

19 35-2185 Knob, Selector (blk) A Appelez-nous -
20 35-2872 Manual, Use & Care A Appelez-nous -
20 35-2588 Pushbutton - Black A Appelez-nous -
20 16000329 Guide, Quick Ref. - Magic Chef A Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

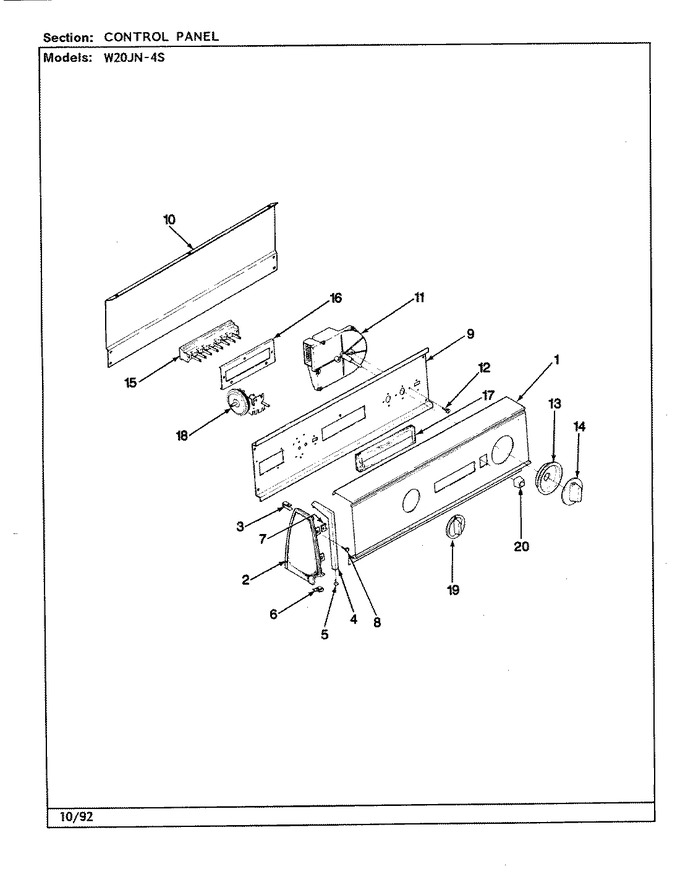

Diagram for W20JA4S
