Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 35-2679 Control Panel Appelez-nous -
2 25-7852 Speedclip, Rr Shld To End Cap Appelez-nous -
2 WP33002917 Screw   (Replaces: 25-7435) In-Stock Immediately $ 6.90

3 34-9487 Plate, Reinforcement Appelez-nous -
3 25-7649 Screw Appelez-nous -
3 35-2488 Cap, End (lt) Appelez-nous -
3 25-7852 Speedclip, Rr Shld To End Cap Appelez-nous -
3 35-2487 Cap, End (rt) Appelez-nous -
3 25-7851 Speedclip, End Cap To Top Appelez-nous -
3 25-7702 Speedclip, End Cap To Ctrl Pnl Appelez-nous -
3 25-7697 Screw Appelez-nous -
3 WP33002917 Screw   (Replaces: 25-7435) In-Stock Immediately $ 6.90

4 53-0278 Trim, End Cap (lt) Appelez-nous -
4 25-7760 Screw Appelez-nous -
4 53-0277 Trim, End Cap (rt) Appelez-nous -
5 25-7702 Speedclip, End Cap To Ctrl Pnl Appelez-nous -
5 WP90767 Screw   (Replaces: 25-3092) In-Stock Immediately $ 7.04

6 35-2680 Control Shield Appelez-nous -
7 25-7583 Plastic Nut Appelez-nous -
7 WP12990527 Screw, Sems   (Replaces: 25-3457) In-Stock Immediately $ 7.15

7 WP90767 Screw   (Replaces: 25-3092) In-Stock Immediately $ 7.04

7 35-2688 Shield, Control Panel (rear) Appelez-nous -
8 35-2748CP Timer   (Replaces: 35-2211) Appelez-nous -
9 25-0205 Screw Appelez-nous -
10 35-2254 Skirt & Ring Assy Appelez-nous -
11 35-2486 Timer Knob Appelez-nous -
12 35-2198 Switch Appelez-nous -
13 33-6623 Bracket Appelez-nous -
13 WP90767 Screw   (Replaces: 25-3092) In-Stock Immediately $ 7.04

14 35-0691-04 Signal Light Appelez-nous -
14 35-0691-05 Light Assy Appelez-nous -
14 35-0691-06 Light Assy Appelez-nous -
14 35-0691-01 Signal Light Appelez-nous -
15 35-2163-04 Pushbutton Appelez-nous -
15 35-2163-01 Pushbutton Appelez-nous -
15 35-2163-02 Pushbutton Appelez-nous -
15 35-2163-08 Pushbutton Appelez-nous -
15 35-2163-07 Pushbutton Appelez-nous -
15 35-2163-06 Pushbutton Appelez-nous -
15 35-2163-05 Pushbutton Appelez-nous -
15 35-2163-03 Pushbutton Appelez-nous -
16 25-7882 Palnut Appelez-nous -
16 35-0685 Pb Bezel Appelez-nous -
16 35-0690 Lens Appelez-nous -
16 35-2164 Lens Appelez-nous -
17 35-2257 Terminal Block Appelez-nous -
18 25-7649 Screw Appelez-nous -
19 WP90767 Screw   (Replaces: 25-3092) In-Stock Immediately $ 7.04

19 WP21001554 Pressure Switch   (Replaces: 35-2145) Special Order $ 143.59

20 35-2475 Selector Knob Appelez-nous -
21 35-0688 Pb Switch Appelez-nous -
22 33-6621 Bracket, Switch Appelez-nous -
23 25-7712 Screw Appelez-nous -
23 WP90767 Screw   (Replaces: 25-3092) In-Stock Immediately $ 7.04

24 33-8541 Switch Pad Appelez-nous -
24 35-2666 Manual, U&c Insert Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

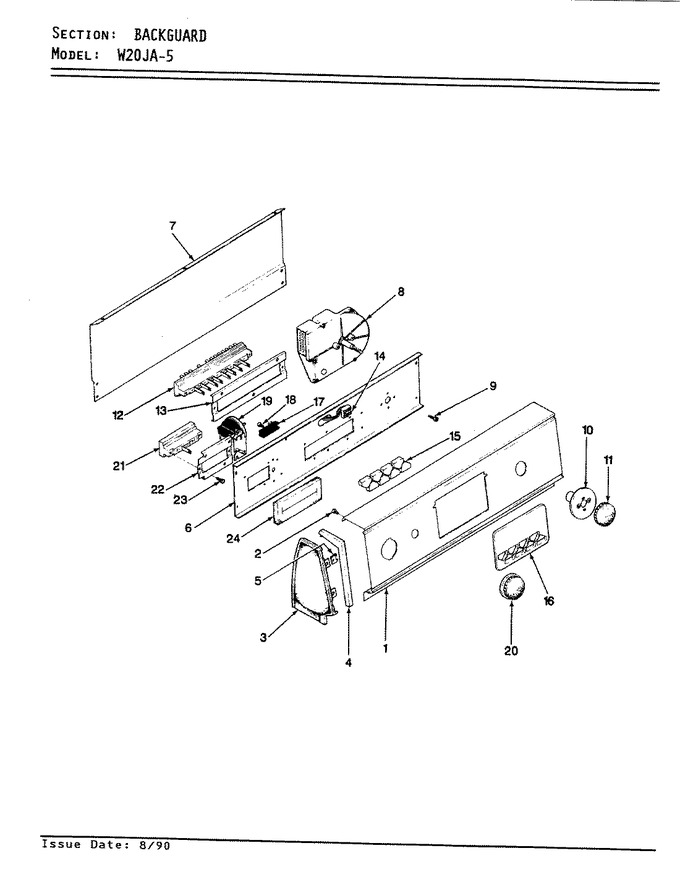

Diagram for W20JA5
