SELECT A DIAGRAM

01 - Base & Drive (rev. A-d)

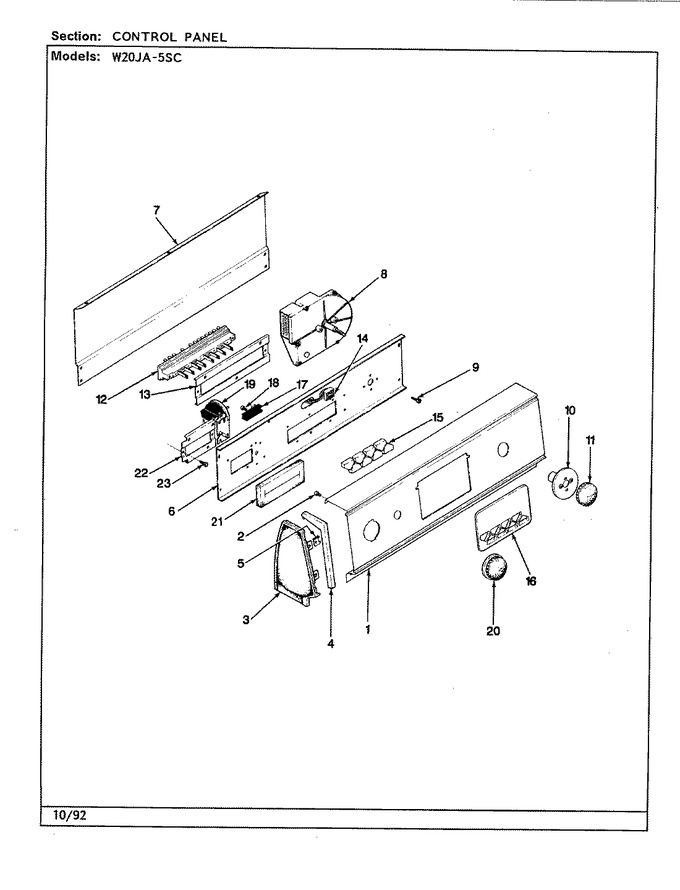

02 - Control Panel (rev. A-d)


03 - Exterior (rev. A-d)


04 - Transmission & Related Parts (rev. A-d)


05 - Tub (rev. A-d)


06 - Water Carrying (rev. A-d)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	35-2848		Control Panel		Appelez-nous	-
2	25-7852		Speedclip, Rr Shld To End Cap		Appelez-nous	-
2	WP33002917		Screw   (Replaces: 25-7435)			Immediately	$ 6.90
3	25-7851		Speedclip, End Cap To Top		Appelez-nous	-
3	WP33002917		Screw   (Replaces: 25-7435)			Immediately	$ 6.90
3	35-2488		Cap, End (lt)		Appelez-nous	-
3	35-2487		Cap, End (rt)		Appelez-nous	-
3	25-7697		Screw		Appelez-nous	-
3	25-7852		Speedclip, Rr Shld To End Cap		Appelez-nous	-
3	25-7649		Screw		Appelez-nous	-
3	25-7702		Speedclip, End Cap To Ctrl Pnl		Appelez-nous	-
4	25-7760		Screw		Appelez-nous	-
4	53-0277		Trim, End Cap (rt)		Appelez-nous	-
4	53-0278		Trim, End Cap (lt)		Appelez-nous	-
5	25-7702		Speedclip, End Cap To Ctrl Pnl		Appelez-nous	-
5	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
6	35-2680		Control Shield		Appelez-nous	-
7	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
7	35-2688		Shield, Control Panel (rear)		Appelez-nous	-
7	WP12990527		Screw, Sems   (Replaces: 25-3457)			Immediately	$ 7.15
7	25-7583		Plastic Nut		Appelez-nous	-
8	35-2845		Timer				$ 197.98
9	25-0205		Screw		Appelez-nous	-
10	35-2254		Skirt & Ring Assy		Appelez-nous	-
11	35-2486		Timer Knob		Appelez-nous	-
12	35-2837		Switch P.b. 8pos		Appelez-nous	-
13	33-6623		Bracket		Appelez-nous	-
13	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
14	35-0691-01		Signal Light		Appelez-nous	-
14	35-0691-03		Signal Light		Appelez-nous	-
14	35-0691-08		Light - Cold/rinse		Appelez-nous	-
14	35-0691-04		Signal Light		Appelez-nous	-
15	35-2163-03		Pushbutton		Appelez-nous	-
15	35-2163-10		Pushbutton - Staincleaner I		Appelez-nous	-
15	35-2163-11		Pushbutton - Staincleaner Ii		Appelez-nous	-
15	35-2163-12		Pushbutton (colorfast)		Appelez-nous	-
15	35-2163-13		Pushbutton		Appelez-nous	-
15	35-2163-09		Pushbutton - Delicate		Appelez-nous	-
15	35-2163-02		Pushbutton		Appelez-nous	-
15	53-1271-04		Push Button		Appelez-nous	-
16	25-7882		Palnut		Appelez-nous	-
16	35-0685		Pb Bezel		Appelez-nous	-
16	35-0690		Lens		Appelez-nous	-
16	35-2853		Lens		Appelez-nous	-
17	35-2257		Terminal Block		Appelez-nous	-
18	25-7649		Screw		Appelez-nous	-
19	WP21001554		Switch, Pressure   (Replaces: 35-3283)	A			$ 143.59
19	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
19	WP21001554		Switch Pressure   (Replaces: 35-2801)				$ 143.59
20	35-2475		Selector Knob		Appelez-nous	-
21	33-8541		Switch Pad		Appelez-nous	-
22	33-6621		Bracket, Switch		Appelez-nous	-
23	25-7712		Screw		Appelez-nous	-
23	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
24	35-3289		Manual, Use & Care		Appelez-nous	-
25	16000329		Guide, Quick Ref. - Magic Chef		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
