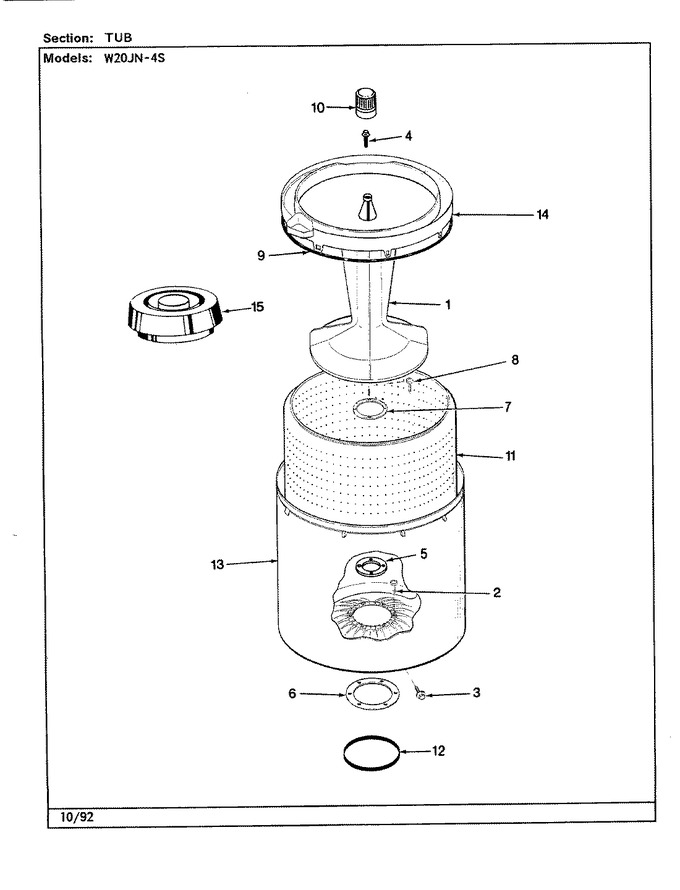

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	35-2717		Agitator	A	Appelez-nous	-
1	35-3580		Agitator	E	Appelez-nous	-
2	25-7947		Screw Shoulder	A	Appelez-nous	-
3	WP22002933		Screw   (Replaces: 25-7953)	A			$ 6.91
4	WPW10309247		Screw, Agitator Retention   (Replaces: 25-7948)	A			$ 32.57
5	35-2980		Gasket	A	Appelez-nous	-
5	35-3685		Gasket, Basket To Centerpost	E			$ 36.70
6	35-2979		Gasket, Tub/hsg (seal)	A	Appelez-nous	-
6	35-3686		Gasket, Tub To Housing	E			$ 5.85
7	35-3014		Gasket & Reinf. Plate Assy	A	Appelez-nous	-
8	25-7783		Screw	A	Appelez-nous	-
9	35-2328		Seal, Tub Top	A			$ 49.43
10	35-2733		Cap, Agitator	A	Appelez-nous	-
11	35-3016		Basket Assy	A	Appelez-nous	-
12	35-2978		Seal, Tub/housing	A			$ 5.85
13	35-2952		Tub Assy	A	Appelez-nous	-
13	35-3700		Tub Assembly (plastic)	E			$ 236.85
14	35-2034		Top, Tub	A	Appelez-nous	-
14	35-2262		Shield, Tub Top	A	Appelez-nous	-
14	35-3578		Top, Tub	E	Appelez-nous	-
15	35-2550		Dispenser, Rinse	A	Appelez-nous	-
