Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 25-7702 Speedclip, End Cap To Ctrl Pnl E Appelez-nous -
1 35-2580 Panel, Control E Appelez-nous -
1 25-7793 Screw E Appelez-nous -
2 35-2669 Cap, End (lt)(wht) E Appelez-nous -
2 35-2668 Cap, End (rt)(wht) E Appelez-nous -
3 25-7697 Screw E Appelez-nous -
3 34-9487 Plate, Reinforcement E Appelez-nous -
3 25-7851 Speedclip, End Cap To Top E Appelez-nous -
4 25-7852 Speedclip, Rr Shld To End Cap E Appelez-nous -
4 WP33002917 Screw   (Replaces: 25-7435) E In-Stock Immediately $ 6.90

5 53-0277 Trim, End Cap (rt) E Appelez-nous -
5 53-0278 Trim, End Cap (lt) E Appelez-nous -
6 25-7760 Screw E Appelez-nous -
7 WP90767 Screw   (Replaces: 25-3092) E In-Stock Immediately $ 7.04

8 25-7702 Speedclip, End Cap To Ctrl Pnl E Appelez-nous -
9 35-2680 Control Shield E Appelez-nous -
10 35-2688 Shield, Control Panel (rear) E Appelez-nous -
10 WP90767 Screw   (Replaces: 25-3092) E In-Stock Immediately $ 7.04

10 WP12990527 Screw, Sems   (Replaces: 25-3457) E In-Stock Immediately $ 7.15

11 35-2208 Timer E Appelez-nous -
12 25-0205 Screw E Appelez-nous -
13 35-2254 Skirt & Ring Assy E Appelez-nous -
14 35-2187 Knob, Timer E Appelez-nous -
15 WP21001554 Pressure Switch   (Replaces: 35-2145) E Special Order $ 143.59

16 35-2185 Knob, Selector (blk) E Appelez-nous -
16 35-2519 Manual, Use & Care E Appelez-nous -
16 WP90767 Screw   (Replaces: 25-3092) E In-Stock Immediately $ 7.04


    View Diagram in Separate Window     Print Icon   Print Part List

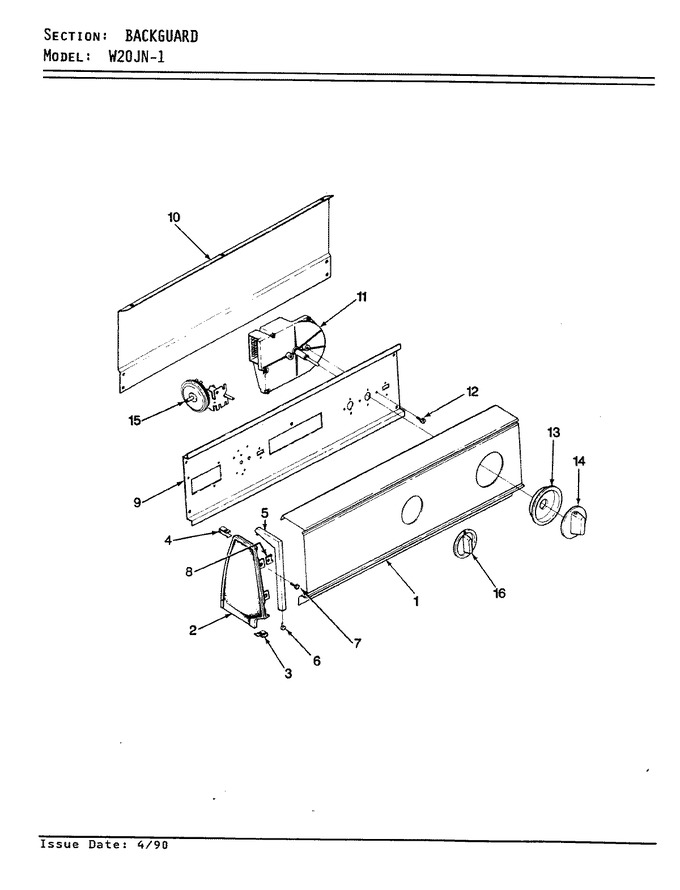

Diagram for W20JY1
