SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door


04 - Fans (convection)


05 - Fans (cooling)


06 - Internal Controls


07 - Oven

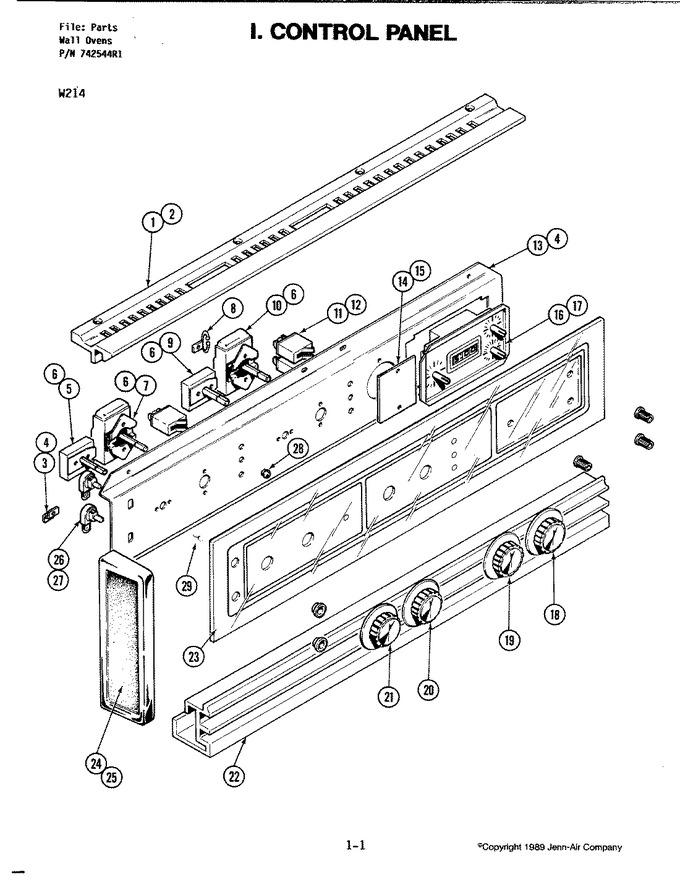

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	703072		Extrusion, Top	1	Appelez-nous	-
2	712066		Screw	1	Appelez-nous	-
3	701609		Angle, Attachment	1	Appelez-nous	-
4	703280		Harness-wire	1	Appelez-nous	-
4	WP12990527		Screw   (Replaces: Y708955)	1		Immediately	$ 7.15
5	703079		Selector-lower	1	Appelez-nous	-
6	71002058		Screw   (Replaces: Y702124)	1			$ 5.82
6	703728		Harness, Oven (upr)	1	Appelez-nous	-
7	703081		Thermostat-lower	1	Appelez-nous	-
8	702746		Tie, Mount Cable	1	Appelez-nous	-
9	703077		Switch, Selector Upper	1	Appelez-nous	-
10	703080		Thermostat-upper	1	Appelez-nous	-
11	Y702394		Light, Indicator 240v	1	Appelez-nous	-
12	Y702393		Light, Indicator-120v	1	Appelez-nous	-
13	705334		Panel, Control	1	Appelez-nous	-
14	703277		Plate, Cover	1	Appelez-nous	-
15	WP74004005		Screw   (Replaces: Y708359)	1			$ 6.95
16	701633		Clock	1	Appelez-nous	-
17	Y702547		Knob, Clock	1	Appelez-nous	-
18	WPY703499		Knob, Thermostat   (Replaces: Y703499)	1			$ 43.52
19	DE81-06568A		Knob, Selector-upper   (Replaces: 703502)	1			$ 163.11
20	DE81-06946A		Knob, Thermostat   (Replaces: 703498)	1			$ 261.98
21	DE81-06566A		Knob, Selector   (Replaces: 703500)	1			$ 132.40
22	703073		Extrusion, Bottom	1	Appelez-nous	-
23	703276		Glass	1	Appelez-nous	-
24	703136		End Cap (rt-chr)	1	Appelez-nous	-
25	DE81-09833A		End Cap (lt-chr)   (Replaces: 703137)	1			$ 761.31
26	700558		Switch, Light (push)	1	Appelez-nous	-
27	701610		Bezel, Switch	1	Appelez-nous	-
28	Y700630		Lens, Indicator Lights	1			$ 4.18
29	703089		Wire, Tan	1	Appelez-nous	-
29	DE81-04412A		Wire, Pink   (Replaces: 703090)	1			$ 327.97
29	703290		Wire, Resistor	1	Appelez-nous	-
29	DE81-09159A		Wire, Wire   (Replaces: 703370)	1			$ 313.88
29	703779		Wire, Brown	1	Appelez-nous	-
29	705331		Pad, Spacer	1	Appelez-nous	-
