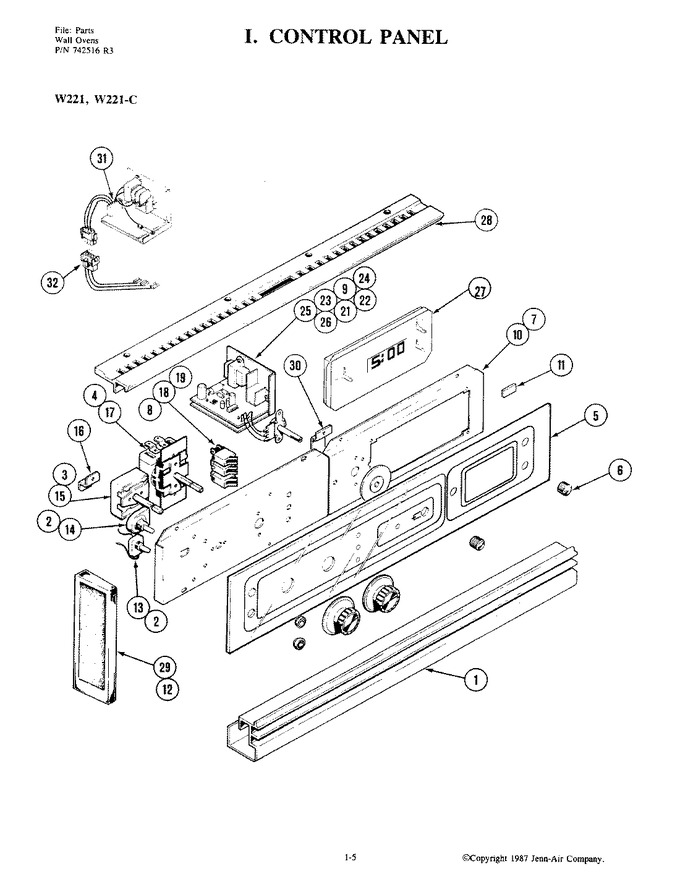

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 701608 | Extrusion, Bottom | 1 |
|
- | ||||
| 2 | 701610 | Bezel, Switch | 1 |
|
- | ||||
| 3 | DE81-03197A | Knob, Selector (Replaces: 701611) | 1 |
|
$ 169.69 | ||||
| 4 | 701612 | Knob, Thermostat | 1 |
|
- | ||||
| 5 | DE81-03508A | Panel, Control (Replaces: 701613) | 1 |
|
$ 382.06 | ||||
| 6 | 700564 | Knob, Clock | 1 |
|
- | ||||
| 7 | DE81-06143A | Panel (lt) (Replaces: 701615) | 1 |
|
$ 393.48 | ||||
| 8 | Y700630 | Lens, Indicator Lights | 1 |
|
$ 4.18 | ||||
| 9 | DE81-03510A | Dial, Temperature (Replaces: 701616) | 1 |
|
$ 439.30 | ||||
| 10 | DE81-03509A | Panel (rt) (Replaces: 701617) | 1 |
|
$ 221.06 | ||||
| 11 | DE81-03511A | Pad, Spacer (Replaces: 701618) | 1 |
|
Immediately | $ 138.07 | |||
| 12 | 701619 | Cap, End (rt) | 1 |
|
- | ||||
| 13 | Y701620 | Switch, Momentary | 1 |
|
- | ||||
| 14 | DE81-08481A | Switch, Push (Replaces: 701621) | 1 |
|
$ 606.80 | ||||
| 15 | Y701622 | Switch, Selector | 1 |
|
- | ||||
| 16 | Y707664 | Washer | 1 |
|
- | ||||
| 16 | 701609 | Angle, Attachment | 1 |
|
- | ||||
| 17 | Y701625 | Thermostat | 1 |
|
- | ||||
| 18 | Y700557 | Light, Indicator | 1 |
|
- | ||||
| 19 | 715396 | Pilot Light & Lens | 1 |
|
- | ||||
| 20 | 701627 | Led | 1 |
|
- | ||||
| 21 | 701628 | Board, Circuit | 1 |
|
- | ||||
| 22 | 700893 | Support, P.c. Board | 1 |
|
- | ||||
| 23 | 701629 | Transformer | 1 |
|
- | ||||
| 23 | Y700584 | Screw | 1 |
|
- | ||||
| 24 | 700894 | Terminal, Ground | 1 |
|
- | ||||
| 25 | 701630 | Bracket, Mount | 1 |
|
- | ||||
| 25 | WP12990527 | Screw (Replaces: Y708955) | 1 |
|
Immediately | $ 7.15 | |||
| 26 | Y701632 | Relay | 1 |
|
- | ||||
| 27 | 701633 | Clock | 1 |
|
- | ||||
| 28 | 701634 | Extrusion, Top | 1 |
|
- | ||||
| 29 | 701635 | Cap, End (lt) | 1 |
|
- | ||||
| 30 | 701844 | Shield, C.b. | 1 |
|
- | ||||
| 30 | 701754 | Bracket, Hat | 1 |
|
- | ||||
| 31 | 712059 | Wire-harness | 1 |
|
- | ||||
| 32 | Y701623 | Block, Terminal | 1 |
|
- | ||||
| 32 | 701775 | Harness, Main | 1 |
|
- | ||||
| 32 | 700867 | Wire-harness | 1 |
|
- |
