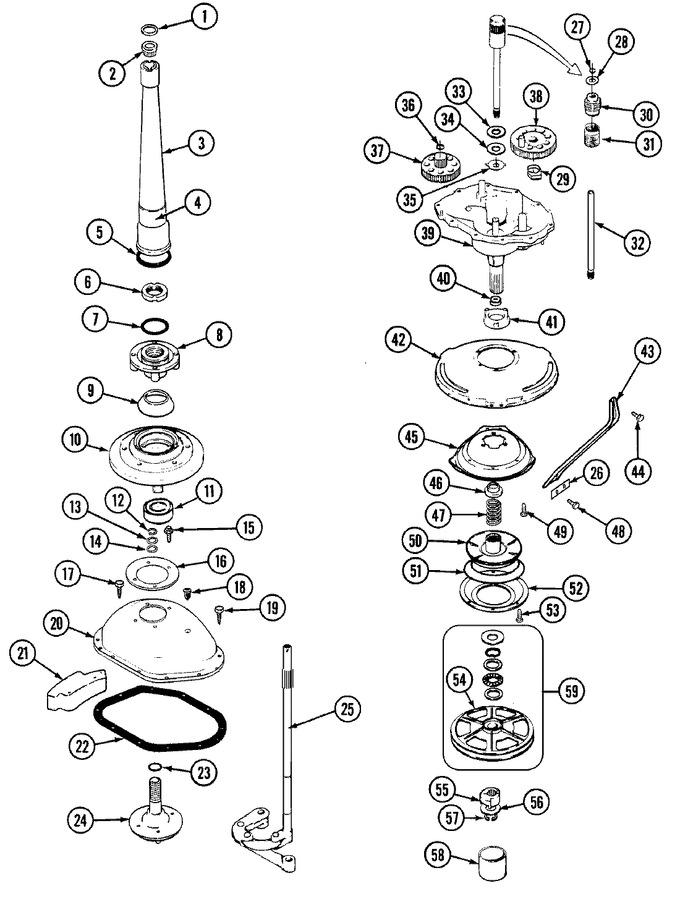

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 25-7941 | ``o`` Ring | 10 |
|
$ 5.83 | ||||
| 2 | 21001066 | Bearing, Centerpost | 10 |
|
- | ||||
| 3 | 35-2983 | Centerpost Assy. | 10 |
|
- | ||||
| 3 | 35-2792 | Centerpost | 10 |
|
- | ||||
| 4 | 33-6790 | Bearing, Agitator | 10 |
|
- | ||||
| 5 | 35-2906 | Seal, Centerpost Bottom | 10 |
|
- | ||||
| 6 | 35-2791 | Nut, Spin Tube | 10 |
|
- | ||||
| 7 | 25-7938 | ``o`` Ring, Basket Drive Hub | 10 |
|
- | ||||
| 8 | 35-3647 | Hub, Basket Drive | 10 |
|
- | ||||
| 9 | 35-2974 | Tub Seal/hub Assy (ht Trans) | 10 |
|
$ 36.14 | ||||
| 10 | 35-2716 | Housing, Bearing & Seal | 10 |
|
- | ||||
| 11 | 35-2972 | Bearing & Seal Housing Assy. | 10 |
|
- | ||||
| 11 | 35-2205 | Bearing, Spin | 10 |
|
$ 40.16 | ||||
| 12 | 25-7949 | Ring, Retaining (ag. Shaft) | 10 |
|
- | ||||
| 13 | 25-7057 | Washer, Flat | 10 |
|
- | ||||
| 14 | 25-7057 | Washer, Flat | 10 |
|
- | ||||
| 15 | 25-7895 | Screw, Susp Hsg To Lwr Brg Asy | 10 |
|
- | ||||
| 16 | 35-2981 | Cover, Reinforcement | 10 |
|
- | ||||
| 17 | 25-7895 | Screw, Susp Hsg To Lwr Brg Asy | 10 |
|
- | ||||
| 18 | 35-2621 | Plug, Oil Fill | 10 |
|
- | ||||
| 19 | 25-7758 | Screw | 10 |
|
- | ||||
| 20 | 35-2971 | Transmission Cover Assy. | 10 |
|
- | ||||
| 20 | 35-2620 | Cover, Transmission | 10 |
|
- | ||||
| 21 | 35-3706 | Counterweight | 10 |
|
- | ||||
| 22 | 35-0542 | Gasket, Transmission Housing | 10 |
|
- | ||||
| 23 | 33-4293N | Gasket Kit | 10 |
|
- | ||||
| 24 | 35-3702 | Drive Tube Assy. | 10 |
|
- | ||||
| 25 | 35-3804 | Linkage Assy. | 10 |
|
- | ||||
| 26 | 35-2025 | Plate, Reinforcement | 10 |
|
- | ||||
| 27 | 25-7847 | Ring, Retaining (clutch Assy.) | 10 |
|
- | ||||
| 28 | 25-7415 | Washer, Flat | 10 |
|
- | ||||
| 29 | 35-3384 | Stop, Antibackup Cam | 10 |
|
- | ||||
| 30 | 35-2001 | Pinion, Drive | 10 |
|
- | ||||
| 31 | 35-3608 | Spring, Clutch | 10 |
|
- | ||||
| 32 | 35-2692 | Drive Shaft & Hub Assy. | 10 |
|
- | ||||
| 33 | 25-7274 | Washer, Steel | 10 |
|
- | ||||
| 34 | 35-3825 | Washer, Nylon | 10 |
|
- | ||||
| 35 | 35-2070 | Washer, Steel W/tabs | 10 |
|
- | ||||
| 36 | 25-7933 | Ring, Retaining | 10 |
|
- | ||||
| 37 | 35-2527 | Gear, Cluster | 10 |
|
- | ||||
| 38 | 21001067 | Gear, Crank | 10 |
|
- | ||||
| 39 | 35-2812 | Housing, Transmission | 10 |
|
- | ||||
| 40 | 35-2010 | Seal,transmission Housing(lip) | 10 |
|
- | ||||
| 41 | 35-2730 | Bearing Assy. (lower) | 10 |
|
- | ||||
| 41 | 35-2973 | Transmission Hsg Assy W/lwr Br | 10 |
|
- | ||||
| 42 | 21001162 | Support, Tub | 10 |
|
- | ||||
| 43 | 21001164 | Brace, Tub | 10 |
|
- | ||||
| 44 | 25-7895 | Screw, Susp Hsg To Lwr Brg Asy | 10 |
|
- | ||||
| 45 | 21001163 | Housing, Suspension | 10 |
|
$ 40.23 | ||||
| 46 | 35-2017 | Retainer, Brake Spring | 10 |
|
$ 5.85 | ||||
| 47 | 35-2112 | Spring, Brake | 10 |
|
- | ||||
| 48 | 25-7930 | Screw 5/16-18x3/4 | 10 |
|
- | ||||
| 49 | 25-7895 | Screw, Susp Hsg To Lwr Brg Asy | 10 |
|
- | ||||
| 50 | 35-2948 | Brake Rotor & Lining Assy | 10 |
|
- | ||||
| 51 | WP21002026 | Snubber (Replaces: 21001161) | 10 |
|
Immediately | $ 9.68 | |||
| 52 | 35-2018 | Stator, Brake | 10 |
|
- | ||||
| 53 | 21001065 | Screw,no.10-24x.50 Hxnibhd | 10 |
|
$ 5.27 | ||||
| 54 | 12002213 | Pulley, Drive (Replaces: 35-3829) | 10 |
|
Immediately | $ 98.84 | |||
| 55 | 12002213 | Cam Replacement Kit (Replaces: LA-2007) | 10 |
|
Immediately | $ 98.84 | |||
| 56 | 35-2082 | Washer,1.25odx.530idx.062 | 10 |
|
$ 5.61 | ||||
| 56 | WP35-2132 | Washer,1.25odx.530idx.032 (Replaces: 35-2132) | 10 |
|
$ 0.65 | ||||
| 57 | WP25-7854 | Ring, Retaining (Replaces: 25-7854) | 10 |
|
$ 10.68 | ||||
| 58 | 35-2007 | Cap, Dust | 10 |
|
- | ||||
| 59 | 12002213 | Thrust Bearing Kit (Replaces: 12500036) | 10 |
|
Immediately | $ 98.84 | |||
| 60 | 21001168 | Transmission Assy. | 10 |
|
- |
