01 - Blower Motor (cooling)


02 - Body (lower)


03 - Control Panel (lower)


04 - Door (lower)


05 - Internal Controls (lower)


06 - Oven (lower)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	704256		Extrusion, Top	1	Appelez-nous	-
2	712066		Screw	1	Appelez-nous	-
3	700558		Switch, Light (push)	1	Appelez-nous	-
4	Y700630		Lens, Indicator Lights	1			$ 4.18
5	Y703911		Knob, Selector (blk)	1	Appelez-nous	-
6	704257		End Cap (lt-blk)	1	Appelez-nous	-
6	704258		End Cap (rt-blk)	1	Appelez-nous	-
7	703676		Bracket, Timer	1	Appelez-nous	-
8	Y703708		Clock	1	Appelez-nous	-
9	703679		Palnut	1	Appelez-nous	-
10	WP7711P492-60		Knob, Clock (sm/blk)   (Replaces: Y704239)	1			$ 12.13
11	WP7711P492-60		Knob, Clock (blk)   (Replaces: Y703910)	1			$ 12.13
12	703078		Switch, Selector (upper)	1	Appelez-nous	-
13	704255		Extrusion, Bottom (blk)	1	Appelez-nous	-
14	705302		Panel, Control	1	Appelez-nous	-
15	705336		Panel, Control (rt)	1	Appelez-nous	-
16	705331		Pad, Spacer	1	Appelez-nous	-
17	705337		Panel, Control (lt)	1	Appelez-nous	-
18	Y702394		Light, Indicator 240v	1	Appelez-nous	-
19	Y702393		Light, Indicator-120v	1	Appelez-nous	-
20	71002058		Screw   (Replaces: Y702124)	1			$ 5.82
20	703080		Thermostat-upper	1	Appelez-nous	-
21	703917		Knob, Thermostat	1			$ 21.34
22	704323		Bezel, Switch	1	Appelez-nous	-
23	WP12990527		Screw   (Replaces: Y708955)	1		Immediately	$ 7.15
23	701609		Angle, Attachment	1	Appelez-nous	-
24	705040		Resistor, Lead	1	Appelez-nous	-
25	702746		Tie, Mount Cable	1	Appelez-nous	-
26	704903		Harness, Wire	1	Appelez-nous	-
27	DE81-09159A		Wire, Wire   (Replaces: 703370)	1			$ 313.88
27	DE81-04412A		Wire, Pink   (Replaces: 703090)	1			$ 327.97
27	703089		Wire, Tan	1	Appelez-nous	-
28	MU130UA		Manual, Use & Care	1	Appelez-nous	-
28	OU106UA		Manual, Use & Care	1	Appelez-nous	-

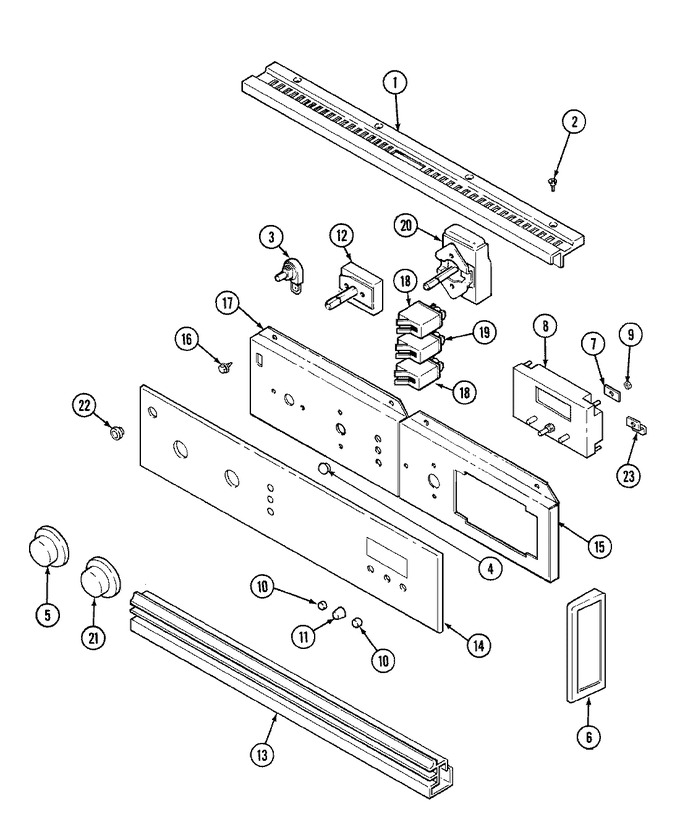

    View Diagram in Separate Window       Print Part List
