View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Base

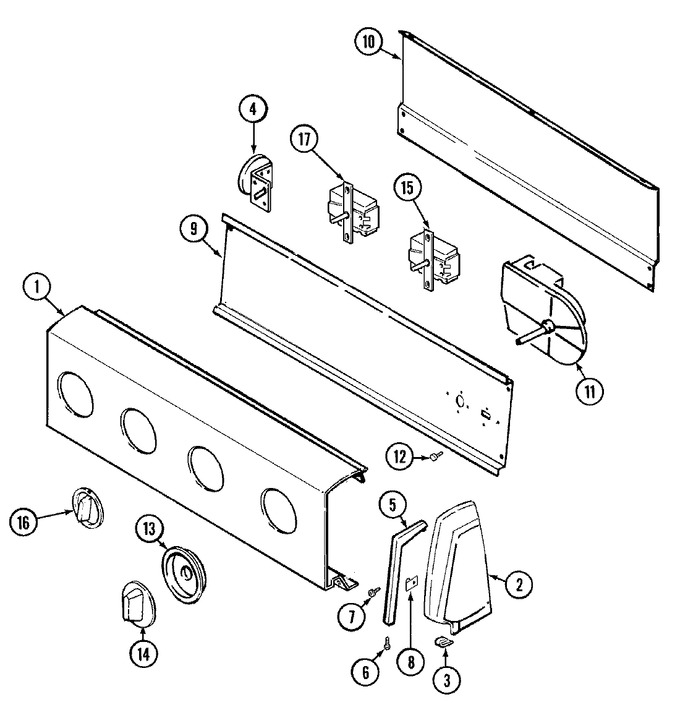

02 - Control Panel
03 - Pump
04 - Top
05 - Transmission (series 10-12)
06 - Transmission (series 13)
07 - Tub
08 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 25-7702 | Speedclip, End Cap To Ctrl Pnl | 10 |
|
- | ||||
| 1 | 21001153 | Panel, Control | 10 |
|
- | ||||
| 1 | 25-7760 | Screw | 10 |
|
- | ||||
| 2 | 21001070 | Cap, End (alm) (lt) | 10 |
|
- | ||||
| 2 | 21001069 | Cap, End (alm) (rt) | 10 |
|
- | ||||
| 3 | 25-7697 | Screw | 10 |
|
- | ||||
| 3 | 25-7851 | Speedclip, End Cap To Top | 10 |
|
- | ||||
| 4 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 4 | WP21001554 | Switch, Water Level (Replaces: 35-3691) | 10 |
|
$ 143.59 | ||||
| 5 | 31001056 | Trim, Endcap (rt)(alm) | 10 |
|
- | ||||
| 5 | 31001057 | Trim, Endcap (lt)(alm) | 10 |
|
- | ||||
| 6 | 25-7760 | Screw | 10 |
|
- | ||||
| 7 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 8 | 25-7702 | Speedclip, End Cap To Ctrl Pnl | 10 |
|
- | ||||
| 9 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 9 | 31001146 | Pad, Control Panel Support | 10 |
|
- | ||||
| 9 | 31001128 | Shield, Control | 10 |
|
- | ||||
| 10 | WP12990527 | Screw, Sems (Replaces: 25-3457) | 10 |
|
Immediately | $ 7.15 | |||
| 10 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 10 | 35-2688 | Shield, Control Panel (rear) | 10 |
|
- | ||||
| 11 | 35-3838 | Timer | 10 |
|
- | ||||
| 11 | 21001339 | Timer | 12 |
|
- | ||||
| 12 | WP3400094 | Screw, Timer (Replaces: 31001029) | 10 |
|
$ 7.14 | ||||
| 13 | 21001117 | Skirt & Ring Assy. (alm) | 10 |
|
- | ||||
| 14 | 21001120 | Knob, Timer | 10 |
|
- | ||||
| 15 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 15 | 21001141 | Switch, Water Temperature | 10 |
|
- | ||||
| 16 | 21001119 | Knob, Selector | 10 |
|
- | ||||
| 17 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 17 | 21001142 | Switch, Speed | 10 |
|
- | ||||
| 18 | 21001053 | Manual, Use & Care | 10 |
|
- | ||||
| 18 | 21001175 | Manual, Use & Care | 10 |
|
- | ||||
| 19 | 16000329 | Guide, Quick Ref. - Magic Chef | 10 |
|
- |
