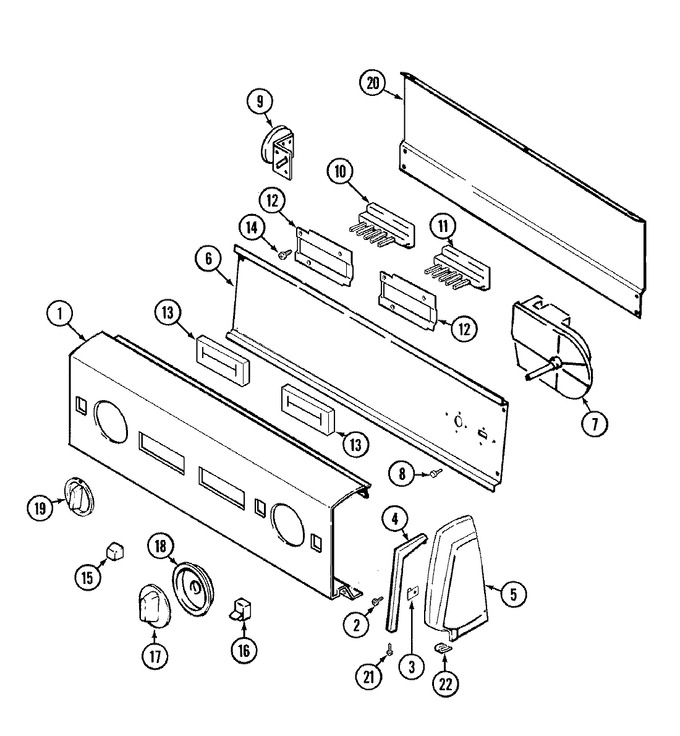

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	21001156		Panel, Control (wht)	10	Appelez-nous	-
1	WP12990527		Screw, Sems   (Replaces: 25-3457)	10		Immediately	$ 7.15
2	25-7760		Screw	10	Appelez-nous	-
3	25-7702		Speedclip, End Cap To Ctrl Pnl	10	Appelez-nous	-
4	31001055		Trim, Endcap (lt Wht)	10	Appelez-nous	-
4	31001054		Trim, Endcap (rt Wht)	10	Appelez-nous	-
5	35-2668		Cap, End (rt)(wht)	10	Appelez-nous	-
5	35-2669		Cap, End (lt)(wht)	10	Appelez-nous	-
6	35-3190		Shield, Control	10	Appelez-nous	-
6	31001146		Pad, Control Panel Support	10	Appelez-nous	-
6	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
7	21001325		Timer	12			$ 174.43
7	35-3843		Timer	10	Appelez-nous	-
8	WP3400094		Screw, Timer   (Replaces: 31001029)	10			$ 7.14
9	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
9	WP21001554		Switch, Water Level   (Replaces: 35-3691)	10			$ 143.59
10	35-3862		Switch, 4 Pushbutton	10	Appelez-nous	-
11	35-3861		Switch, 5 Pushbutton	10	Appelez-nous	-
12	33-6621		Bracket, Switch	10	Appelez-nous	-
13	35-3515		Pad, Switch	10	Appelez-nous	-
14	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
14	25-7712		Screw	10	Appelez-nous	-
15	35-3191		Pushbutton (wht)	10	Appelez-nous	-
16	35-3898		Switch, Rocker (white)	10	Appelez-nous	-
17	35-3963		Knob, Timer	10	Appelez-nous	-
18	35-3965		Skirt & Ring Assy (wht)	10	Appelez-nous	-
19	35-3961		Knob, Selector	10	Appelez-nous	-
20	35-2688		Shield, Control Panel (rear)	10	Appelez-nous	-
21	25-7496		Screw	10	Appelez-nous	-
22	25-7851		Speedclip, End Cap To Top	10	Appelez-nous	-
23	21001172		Manual, Use & Care	10	Appelez-nous	-
23	21001053		Manual, Use & Care	10	Appelez-nous	-
24	16000329		Guide, Quick Ref. - Magic Chef	10	Appelez-nous	-
