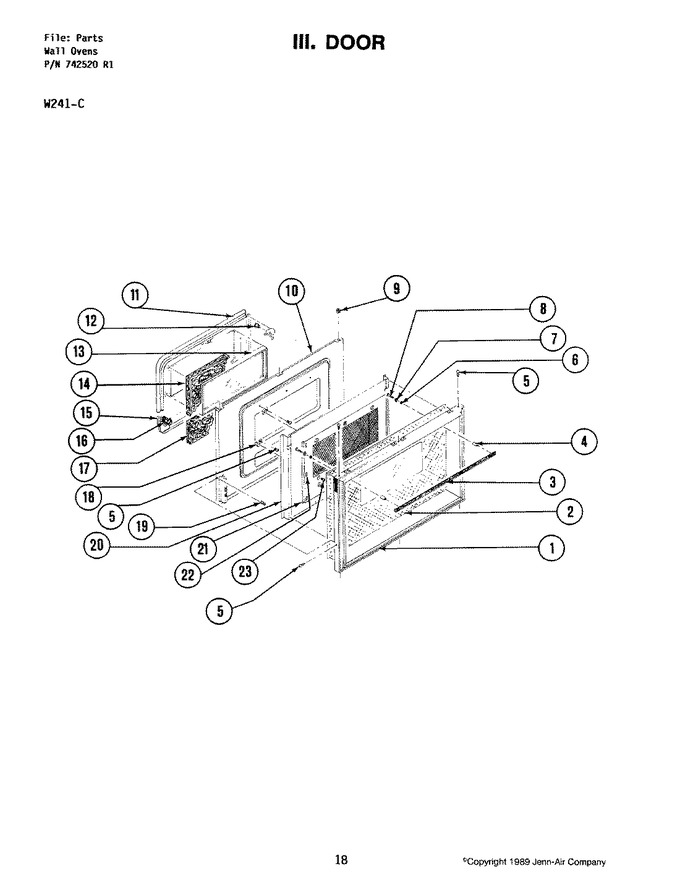

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	702774		Frame	1	Appelez-nous	-
1	703705		Frame	4	Appelez-nous	-
2	701642		Glass, Screened	1	Appelez-nous	-
2	Y703706		Glass, Outer	4	Appelez-nous	-
3	Y703707		Handle	4	Appelez-nous	-
3	702930		Handle----na	1	Appelez-nous	-
4	701832		Post, Mounting	1	Appelez-nous	-
4	Y703430		Pad, Mounting	4	Appelez-nous	-
5	W11233072		Screw   (Replaces: Y707347)	1		Immediately	$ 12.62
5	W11233072		Screw   (Replaces: Y708733)	1		Immediately	$ 12.62
6	715939		Bushing	1	Appelez-nous	-
6	Y703433		Bushing	4	Appelez-nous	-
7	Y700446		Washer	1			$ 5.27
7	Y703431		Palnut	1	Appelez-nous	-
8	Y703533		Screw	1	Appelez-nous	-
9	702657		Nut, Push-in	1	Appelez-nous	-
10	DE81-07129A		Rivet, Accordion   (Replaces: 701641)	1			$ 128.48
10	Y703449		Washer	4	Appelez-nous	-
10	715870		Screw	4	Appelez-nous	-
10	712188		Liner, Door	1	Appelez-nous	-
11	WP701650		Seal, Oven Door   (Replaces: 701650)	1			$ 184.62
12	Y700503		Clip, Retainer	1	Appelez-nous	-
13	WP210720		Rivet   (Replaces: 701662)	1			$ 12.14
13	703804		Pack, Window	4	Appelez-nous	-
13	701648		Window Pack	1	Appelez-nous	-
13	Y712010		Plate, Latch (upper)	1	Appelez-nous	-
14	701658		Insulation, Bottom	1	Appelez-nous	-
15	712209		Plug, Upper	1	Appelez-nous	-
16	701660		Insulation, Top	1	Appelez-nous	-
17	DE81-08905A		Insulation, Side   (Replaces: 701659)	1			$ 160.26
18	701652		Bracket, Stand-off	1	Appelez-nous	-
19	Y700834		Clip	1	Appelez-nous	-
20	712250		Baffle	1	Appelez-nous	-
21	DE81-09358A		Panel, Perforated (upr)   (Replaces: 703784)	1			$ 54.82
22	W10840861		Pad, Spacer   (Replaces: Y702688)	1			$ 8.89
23	703958		Screw	1	Appelez-nous	-
23	WPY706189		Screw   (Replaces: 700906)	4		Immediately	$ 6.47
