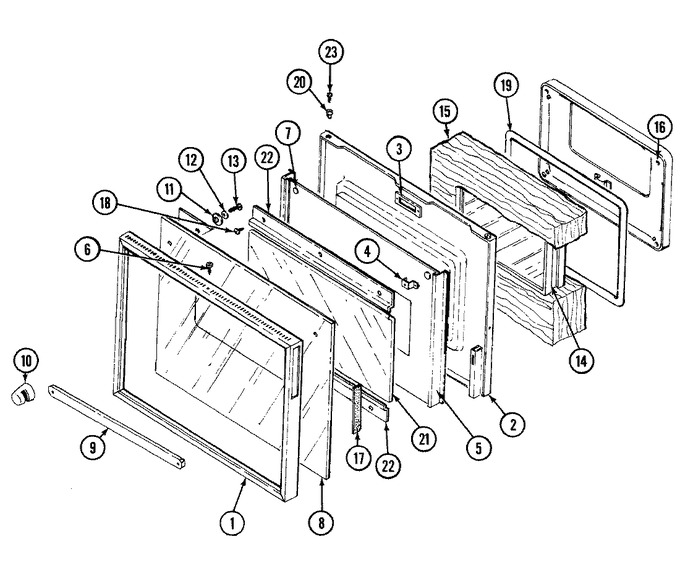

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 04100633 | Frame, Door | 11 |
|
- | ||||
| 2 | 71003079 | Liner, Oven Door | 13 |
|
- | ||||
| 2 | 71001137 | Oven Door Weld | 11 |
|
- | ||||
| 3 | WP210720 | Rivet (Replaces: 701662) | 11 |
|
$ 12.14 | ||||
| 3 | 71001095 | Plate, Striker | 11 |
|
- | ||||
| 4 | 701652 | Bracket, Stand-off | 11 |
|
- | ||||
| 5 | 71001295 | Baffle, Door | 11 |
|
- | ||||
| 6 | WPY706189 | Screw (blk) (Replaces: Y704238) | 11 |
|
Immediately | $ 6.47 | |||
| 7 | Y704223 | Bumper, Button | 11 |
|
- | ||||
| 8 | 71001142 | Glass, Door (blk) | 11 |
|
- | ||||
| 9 | Y04100635 | Handle | 11 |
|
- | ||||
| 10 | Y704224 | End Cap (blk) | 11 |
|
- | ||||
| 11 | Y704489 | Bushing | 11 |
|
- | ||||
| 12 | 704805 | Gusset----na | 11 |
|
- | ||||
| 12 | 701736 | Washer | 11 |
|
- | ||||
| 13 | 704963 | Screw | 11 |
|
- | ||||
| 14 | 701648 | Window Pack | 11 |
|
- | ||||
| 15 | 71001296 | Insulation, Oven | 11 |
|
- | ||||
| 16 | Y04100664 | Door Plug Weld | 11 |
|
- | ||||
| 16 | 71003296 | Plug, Door | 13 |
|
- | ||||
| 17 | Y04100580 | Insert, Frame (blk)----na | 11 |
|
- | ||||
| 18 | Y704488 | Screw (black) | 11 |
|
- | ||||
| 19 | WP701650 | Seal, Oven Door (Replaces: 701650) | 11 |
|
$ 184.62 | ||||
| 20 | 701643 | Nut, Push In | 11 |
|
- | ||||
| 21 | Y704820 | Glass, Baffle | 11 |
|
- | ||||
| 22 | 71001290 | Retainer, Glass | 11 |
|
- | ||||
| 23 | WPY706189 | Screw (Replaces: Y706189) | 11 |
|
Immediately | $ 6.47 |
