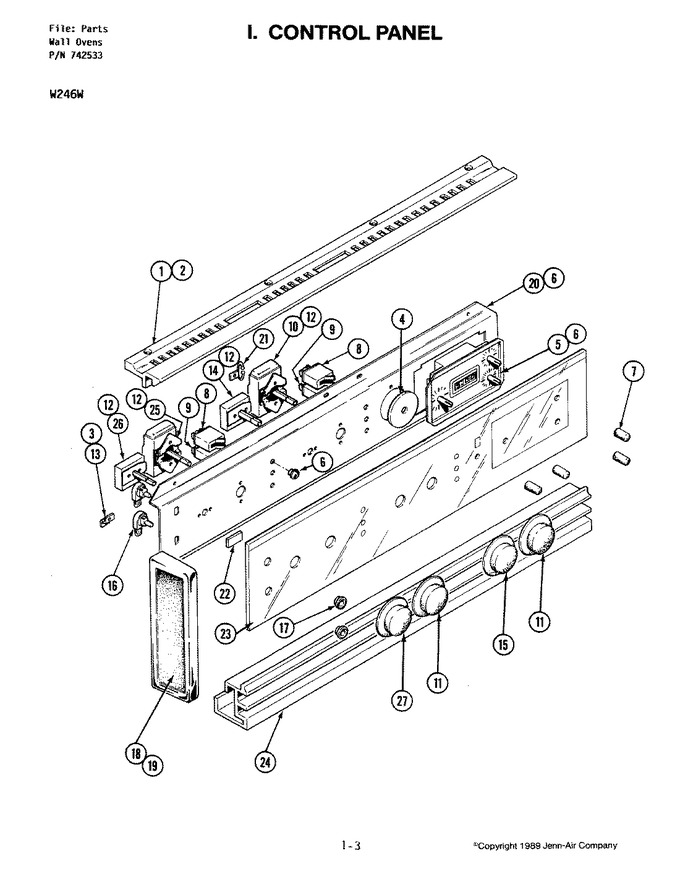

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	703072		Extrusion, Top	1	Appelez-nous	-
2	712066		Screw	1	Appelez-nous	-
3	WP12990527		Screw   (Replaces: Y708955)	1		Immediately	$ 7.15
4	704879		Lens, Probe	1	Appelez-nous	-
5	704877		Clock	1	Appelez-nous	-
6	703143		Lens, Light	1	Appelez-nous	-
7	WP7711P492-60		Knob, Clock (lg-gry) ??   (Replaces: Y704485)	1			$ 12.13
8	Y702394		Light, Indicator 240v	1	Appelez-nous	-
9	Y702393		Light, Indicator-120v	1	Appelez-nous	-
10	703080		Thermostat-upper	1	Appelez-nous	-
11	Y704482		Knob, Thermostat (wht)	1	Appelez-nous	-
12	71002058		Screw   (Replaces: Y702124)	1			$ 5.82
13	701609		Angle, Attachment	1	Appelez-nous	-
14	703077		Switch, Selector Upper	1	Appelez-nous	-
15	704483		Knob, Select Switch (gry)-na	1			$ 7.87
16	704878		Switch, Push	1	Appelez-nous	-
17	704897		Bezel, Switch	1	Appelez-nous	-
18	DE81-09833A		End Cap (lt-chr)   (Replaces: 703137)	1			$ 761.31
19	703136		End Cap (rt-chr)	1	Appelez-nous	-
20	703070		Panel, Control	1	Appelez-nous	-
21	702746		Tie, Mount Cable	1	Appelez-nous	-
22	DE81-03511A		Pad, Spacer   (Replaces: 701618)	1		Immediately	$ 138.07
23	704875		Glass, Control Panel	1	Appelez-nous	-
24	704874		Extrusion, Bottom (chr)	1	Appelez-nous	-
25	703082		Thermostat, Lower Oven	1	Appelez-nous	-
26	703078		Switch, Selector (upper)	1	Appelez-nous	-
27	DE81-04412A		Wire, Pink   (Replaces: 703090)	1			$ 327.97
27	703089		Wire, Tan	1	Appelez-nous	-
27	703086		Harness, Wire	1	Appelez-nous	-
27	703084		Harness, Wire	1	Appelez-nous	-
27	703267		Wire, Resistor	1	Appelez-nous	-
27	DE81-09159A		Wire, Wire   (Replaces: 703370)	1			$ 313.88
27	WPY704841		Knob, Selector (lwr)   (Replaces: 704876)	1			$ 40.37

    View Diagram in Separate Window       Print Part List
