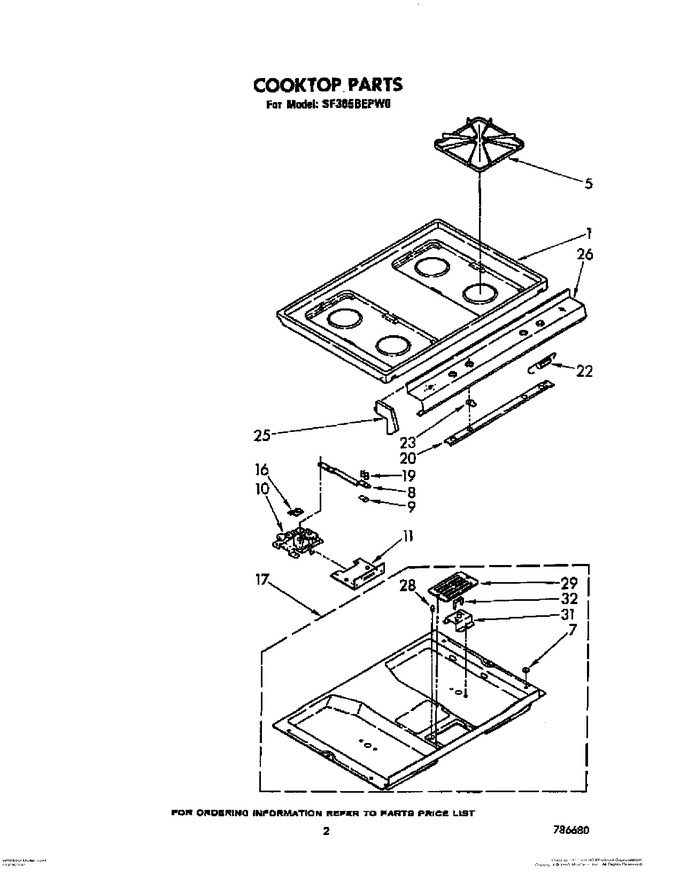

02 - Cooktop


03 - Internal Oven


04 - External Oven


05 - Manifold


06 - Oven Electrical


07 - Oven Door And Drawer


08 - Drawer (for 2 Track System)


09 - Backguard, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	786332		Top, Main (white)		Appelez-nous	-
1	786331		Top, Main (almond)		Appelez-nous	-
1	786330		Top, Main (toast)		Appelez-nous	-
1	786329		Top, Main (platinum)		Appelez-nous	-
1	WP965173		Top, Main (screw (4))   (Replaces: 786223)			Immediately	$ 9.65
5	786354		Grate, Top Burner (4)		Appelez-nous	-
7	786342		Spacer, Nylon (2)		Appelez-nous	-
8	786376		Handle, Latch		Appelez-nous	-
9	786690		Support, Handle		Appelez-nous	-
10	WP965173		Screw, 8 X 3/8 (4)   (Replaces: 786745)			Immediately	$ 9.65
10	786303		Latch Assembly		Appelez-nous	-
11	786378		Bracket, Mounting Latch		Appelez-nous	-
16	786752		Screw, 4-40 (2)		Appelez-nous	-
16	786381		Bracket, Switch		Appelez-nous	-
17	WP965173		Screw, 8 X 3/8 (6)   (Replaces: 786745)			Immediately	$ 9.65
17	786383		Burner Box		Appelez-nous	-
19	786386		Knob, Latch Handle		Appelez-nous	-
20	786390		Actuator, Spark Ignitor		Appelez-nous	-
22	786391		Spring		Appelez-nous	-
23	786392		Cam (4)		Appelez-nous	-
25	786394		End Cap (left)		Appelez-nous	-
25	786393		End Cap (right)		Appelez-nous	-
26	786395		Panel, Control		Appelez-nous	-
28	786682		Orifice		Appelez-nous	-
29	786683		Plate, Cover		Appelez-nous	-
31	786684		Bracket, Top (2)		Appelez-nous	-
32	786754		Bracket, Electrode (2)		Appelez-nous	-
