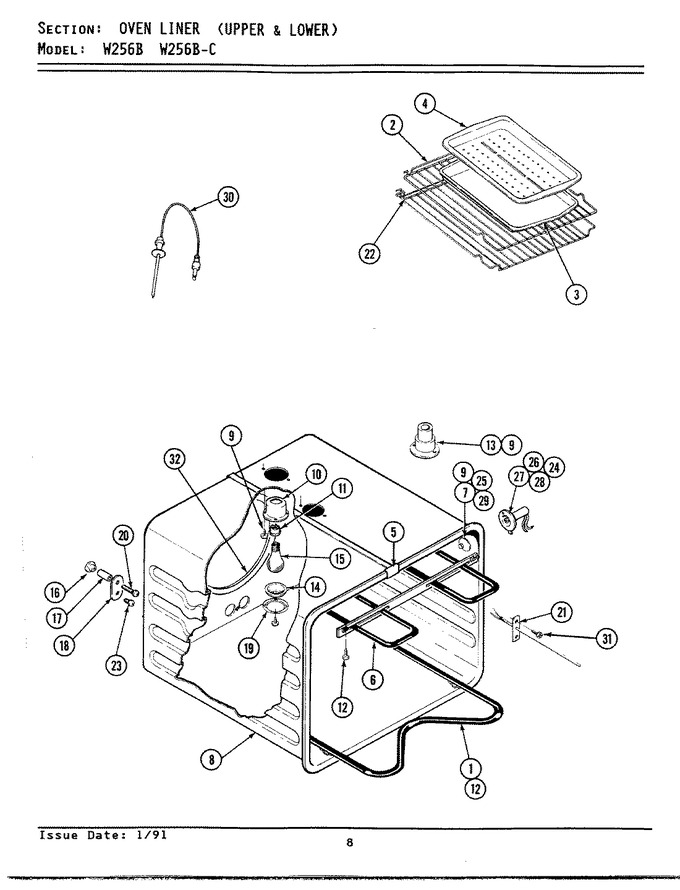

Diagram #	Part Number	Description	Series	Availability	Ships	Price
1	WPY04100020	Element, Bake 240v (Replaces: Y701724)	1		Immediately	$ 136.96
2	Y704661	Rack, Oven	1	Appelez-nous	-
3	4396923	Pan, Broil (Replaces: 703164)	1		Immediately	$ 52.04
4	4396923	Insert, Broil Pan (Replaces: 703165)	1		Immediately	$ 52.04
5	Y702618	Clip, Oven	1	Appelez-nous	-
6	WPY04100514	Element, Broil (Replaces: Y704667)	1			$ 138.97
7	DE81-03805A	Cover (upper) (Replaces: 701732)	1			$ 113.65
7	712088	Cover, Meat Probe	1	Appelez-nous	-
8	12200005	Liner, Assembly Kit	1	Appelez-nous	-
8	701703	Insulation, Rear	1	Appelez-nous	-
8	701702	Insulation, Wrap	1	Appelez-nous	-
9	WP1163283	Screw (Replaces: Y703741)	1			$ 6.47
10	704142	Receptacle, Holder	1	Appelez-nous	-
11	Y704145	Receptacle, Snap-in	1	Appelez-nous	-
12	WP179051	Screw (Replaces: 708764)	1		Immediately	$ 7.16
13	701738	Tube, Vent	1	Appelez-nous	-
14	Y704143	Lens, Light	1	Appelez-nous	-
15	8009	Bulb, Oven (40 Watt Brass) (Replaces: Y707319)	1		Immediately	$ 16.80
16	715294	Nut, Tee	1	Appelez-nous	-
17	701741	Spacer, Oven	1	Appelez-nous	-
18	701742	Plate, Grounding	1	Appelez-nous	-
19	Y704144	Retainer, Lens	1	Appelez-nous	-
20	705170	Screw	1	Appelez-nous	-
21	12001656	Sensor, Oven (Replaces: Y704657)	1		Immediately	$ 39.55
21	12001656	Probe, Oven Sensor (Replaces: 12500029)	2		Immediately	$ 39.55
22	Y704663	Rack, Oven (offset)	1	Appelez-nous	-
23	WP179051	Screw (Replaces: 708764)	1		Immediately	$ 7.16
24	704822	Harness, Probe	1	Appelez-nous	-
25	703007	Standoff	1	Appelez-nous	-
26	Y703356	Nut, Hex 3/8``	1	Appelez-nous	-
27	Y701731	Mount, Meat Probe	1	Appelez-nous	-
28	Y703022	Jack, Probe	1	Appelez-nous	-
29	703773	Screw	1	Appelez-nous	-
30	WP71001870	Probe, Meat (Replaces: Y700884)	1			$ 201.71
31	WPW10253196	Screw (Replaces: Y707113)	1			$ 3.76
32	702929	Button, Plug	1	Appelez-nous	-
32	WP74003976	Washer (Replaces: 702592)	1			$ 6.47
