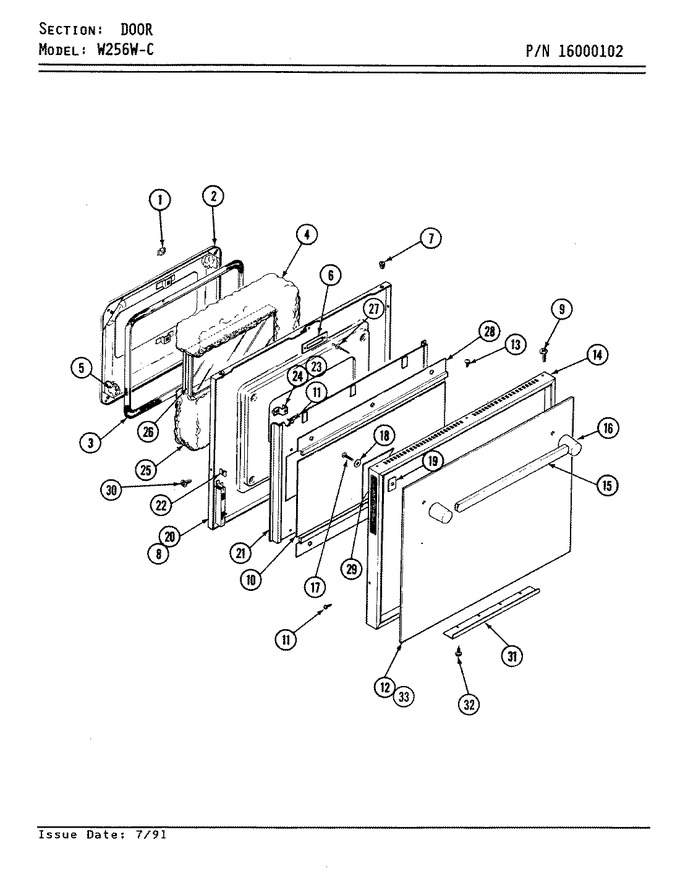

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 705404 | Clip | 1 |
|
- | ||||
| 2 | 712209 | Plug, Upper | 1 |
|
- | ||||
| 3 | WP701650 | Seal, Oven Door (Replaces: 701650) | 1 |
|
$ 184.62 | ||||
| 4 | DE81-08905A | Insulation, Side (Replaces: 701659) | 1 |
|
$ 160.26 | ||||
| 5 | 701660 | Insulation, Top | 1 |
|
- | ||||
| 6 | Y712010 | Plate, Latch (upper) | 1 |
|
- | ||||
| 7 | 701643 | Nut, Push In | 1 |
|
- | ||||
| 8 | DE81-07129A | Rivet, Accordion (Replaces: 701641) | 1 |
|
$ 128.48 | ||||
| 9 | 704491 | Tape, Foam | 1 |
|
- | ||||
| 10 | Y704820 | Glass, Baffle | 1 |
|
- | ||||
| 11 | W11233072 | Screw (Replaces: Y707347) | 1 |
|
Immediately | $ 12.62 | |||
| 12 | 705013 | Glass (lwr) | 1 |
|
- | ||||
| 12 | 704919 | Glass (upper) | 1 |
|
- | ||||
| 13 | WP74004005 | Screw (Replaces: 707365) | 1 |
|
$ 6.95 | ||||
| 14 | 704920 | Frame | 1 |
|
- | ||||
| 15 | ODH1 | Handle ----na (Replaces: 704453) | 1 |
|
$ 45.63 | ||||
| 16 | Y704454 | End Cap (wht) | 1 |
|
- | ||||
| 17 | Y704231 | Screw | 1 |
|
- | ||||
| 18 | 701736 | Washer | 1 |
|
- | ||||
| 19 | Y704489 | Bushing | 1 |
|
- | ||||
| 20 | 712188 | Liner, Door | 1 |
|
- | ||||
| 21 | 712250 | Baffle | 1 |
|
- | ||||
| 22 | 704487 | Clip | 1 |
|
- | ||||
| 23 | W11233072 | Screw (Replaces: Y708733) | 1 |
|
Immediately | $ 12.62 | |||
| 24 | 701652 | Bracket, Stand-off | 1 |
|
- | ||||
| 25 | 701658 | Insulation, Bottom | 1 |
|
- | ||||
| 26 | 703804 | Pack, Window | 1 |
|
- | ||||
| 27 | WP210720 | Rivet (Replaces: 701662) | 1 |
|
$ 12.14 | ||||
| 28 | Y704819 | Retainer, Glass | 1 |
|
- | ||||
| 29 | 704805 | Gusset----na | 1 |
|
- | ||||
| 31 | 704744 | Rail, Glass | 1 |
|
- |
