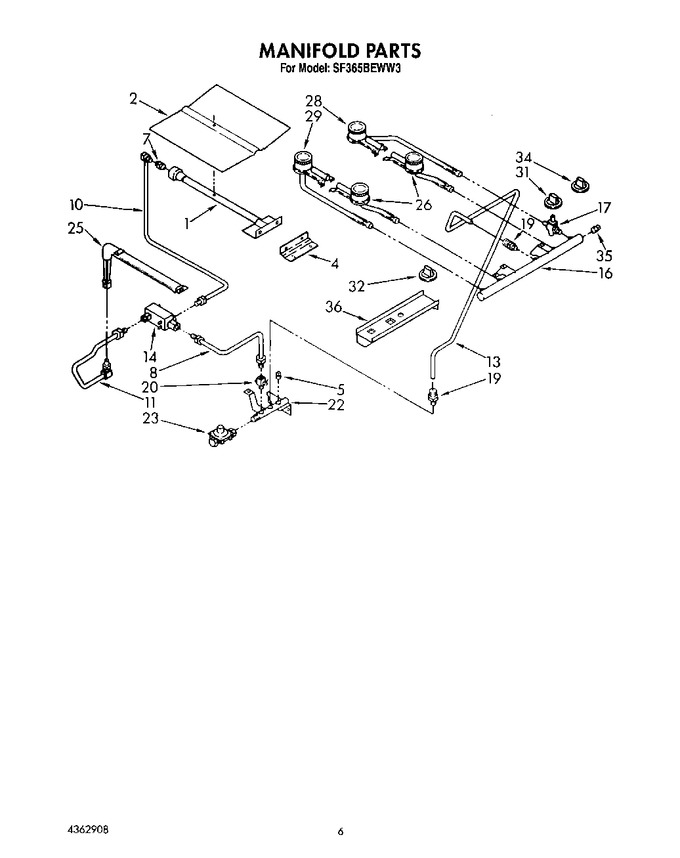

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4320907		Burner, Broiler		Appelez-nous	-
1	786753		Nut, 6-32 (6)		Appelez-nous	-
2	4320928		Reflector, Broil		Appelez-nous	-
4	4320888		Bracket, Burner Mounting		Appelez-nous	-
5	W10295523		Pipe Plug, 1/8 Npt   (Replaces: 786545)		Appelez-nous	-
7	4320926		Spud, Orifice (natural Gas No. 50)		Appelez-nous	-
7	786309		Lp Gas No. 58		Appelez-nous	-
8	4320314		Tubing, (inlet To Gas Valve)		Appelez-nous	-
10	4320925		Orifice & Tubing Assembly (gas Valve To Broil Burner)		Appelez-nous	-
10	786741		Nut, Lock		Appelez-nous	-
11	786741		Nut, Lock		Appelez-nous	-
11	4320315		Hood & Tubing Assembly (gas Valve To Lower Oven Burner)		Appelez-nous	-
13	4320313		Tubing (inlet To Manifold)		Appelez-nous	-
14	4320316		Valve, Dual Gas Valve		Appelez-nous	-
16	4320317		Manifold		Appelez-nous	-
17	4320318		Valve, Top Burner (tri-set)		Appelez-nous	-
19	4320319		Fitting		Appelez-nous	-
20	4362689		Valve, Shut Off		Appelez-nous	-
22	4320321		Inlet, Gas		Appelez-nous	-
23	786313		Regulator, Pressure		Appelez-nous	-
25	786314		Oven Burner, Lower		Appelez-nous	-
26	786315		Top Burner, Front (2)		Appelez-nous	-
28	786316		Top Burner, R.r.		Appelez-nous	-
29	786317		Top Burner, L.r.		Appelez-nous	-
31	4320722		Knob, Top Burner (4)		Appelez-nous	-
32	4321296		Knob, Oven Control		Appelez-nous	-
34	4320738		Knob, Selector		Appelez-nous	-
35	786665		Pipe Plug, 3/8 Npt		Appelez-nous	-
36	4315678		Shelf, Gas Valve		Appelez-nous	-
