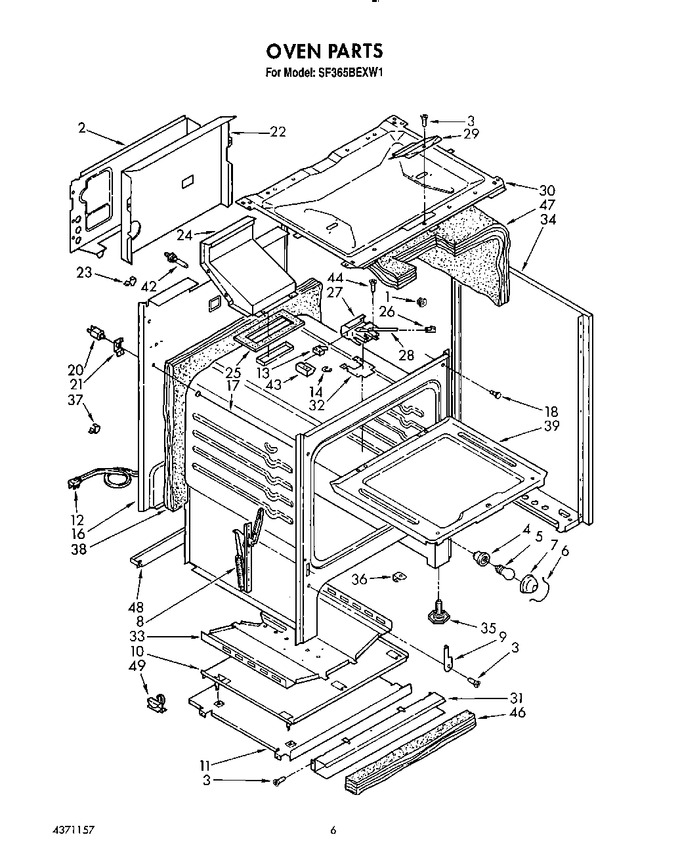

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	816669		Spacer, Body		Appelez-nous	-
2	816659		Shield, Wool		Appelez-nous	-
3	786375		No.8-18 X 17/16		Appelez-nous	-
3	816651		Screw		Appelez-nous	-
4	W10856866		Socket, Oven Lamp   (Replaces: 816668)				$ 6.47
5	8009		Lamp, Oven   (Replaces: 816641)			Immediately	$ 16.80
6	W10856866		Retainer, Glass   (Replaces: 816891)				$ 6.47
7	816609		Lens, Oven Lamp		Appelez-nous	-
8	4371035		Hinge, Oven Door (2)		Appelez-nous	-
9	816617		Cover, Hinge		Appelez-nous	-
10	4371042		Shield, Heat (upper)		Appelez-nous	-
11	816657		Shield,		Appelez-nous	-
11	4320309		Heat (lower)		Appelez-nous	-
12	816614		Cord, Power		Appelez-nous	-
13	4371037		Switch, Latch		Appelez-nous	-
14	WPW10339879		Fastener, Push-on   (Replaces: 816633)				$ 7.11
16	816581		Back, Main		Appelez-nous	-
17	4371038		Rod, Light		Appelez-nous	-
18	816608		Bumper, Front (2)		Appelez-nous	-
20	816671		Switch, Door		Appelez-nous	-
21	816587		Bracket, Light Switch		Appelez-nous	-
22	816662		Shield, Heat		Appelez-nous	-
23	816577		Clip, Wire		Appelez-nous	-
24	816619		Flue Box		Appelez-nous	-
25	816620		Gasket, Flue		Appelez-nous	-
26	816613		Knob, Latch		Appelez-nous	-
27	816635		Latch, Door		Appelez-nous	-
28	816634		Handle, Latch		Appelez-nous	-
29	816615		Plate, Cover		Appelez-nous	-
30	4371025		Burner Box		Appelez-nous	-
31	816776		Shield, Main Front		Appelez-nous	-
32	816638		Shield, Latch		Appelez-nous	-
33	786521		Heat Baffle				$ 45.18
33	816660		Shield,		Appelez-nous	-
34	816672		Panel, Side (l.h.) (almond)		Appelez-nous	-
34	816709		Panel, Side (l.h.) (white)		Appelez-nous	-
34	816695		Panel, Side (l.h.) (almond Panel, Side (rh))		Appelez-nous	-
34	816708		Panel, Side (l.h.) (white)		Appelez-nous	-
35	816650		Screw, Leveler (4)		Appelez-nous	-
36	816670		Support, Oven Bottom		Appelez-nous	-
37	816618		Fastener, Cord		Appelez-nous	-
38	816630		Insulation, Oven Back		Appelez-nous	-
39	4371018		Bottom, Oven		Appelez-nous	-
42	816639		Spacer, (2)		Appelez-nous	-
43	816637		Shield, Latch		Appelez-nous	-
44	816653		Screw, Latch Knob		Appelez-nous	-
46	816627		Insulation, Front		Appelez-nous	-
47	816629		Insulation, Oven Wrapper		Appelez-nous	-
48	816585		Bracket, Anti-tip		Appelez-nous	-
49	816621		Glide, Drawer		Appelez-nous	-
