Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP3196164 Screw   (Replaces: 25-7405) In-Stock Immediately $ 7.82

2 33-6035 Plate & Pulley Assy. Appelez-nous -
3 33-6032 Gasket Appelez-nous -
4 35-2058 Base, Pump Appelez-nous -
5 WP35-6465 Impeller   (Replaces: 35-2057) In-Stock Immediately $ 119.24

6 WP35-6465 Pump Assy (complete)   (Replaces: 35-2099) In-Stock Immediately $ 119.24

6 35-2056 Housing, Pump Appelez-nous -
7 35-2375 Valve, Water Mixing-230v Appelez-nous -
7 WP25-7220 Clip, Cabinet Top   (Replaces: 25-7220) Special Order $ 10.77

8 WP596669 Clamp   (Replaces: 25-7867) In-Stock Immediately $ 7.56

9 12002749 Hose, Flume/diverter (rubber)   (Replaces: 35-2378) Special Order $ 25.97

10 WP596669 Clamp   (Replaces: 25-7867) In-Stock Immediately $ 7.56

11 35-2321 Hose, Pressure Switch Appelez-nous -
11 35-2261 Pad, Pressure Switch Hose Appelez-nous -
12 33-6099 Clamp Appelez-nous -
13 33-9436 Rubber Hose Appelez-nous -
14 W11629055 Hose, Inlet   (Replaces: 35-0873) Special Order $ 24.93

14 WP89503 Hose, 5` Inlet   (Replaces: 33-7046) In-Stock Immediately $ 21.68

15 WP90767 Screw   (Replaces: 25-3092) In-Stock Immediately $ 7.04

16 35-2051 Flume, Water Inlet Appelez-nous -
17 35-0707 Seal, Seat & ``o`` Ring Appelez-nous -
18 WPW10001180 Screw   (Replaces: 25-7894) Special Order $ 7.23

19 25-6069 Corbin Clamp Appelez-nous -
20 35-2131 Hose, Sump To Pump Appelez-nous -
21 WP285655 Clamp, Discharge Hose   (Replaces: 25-7080) In-Stock Immediately $ 7.55

22 25-7048 Washer Appelez-nous -
23 33-7313 Strainer, Hose Appelez-nous -
24 WP596669 Clamp, Pressure Switch Hose   (Replaces: 25-7796) In-Stock Immediately $ 7.56


    View Diagram in Separate Window     Print Icon   Print Part List

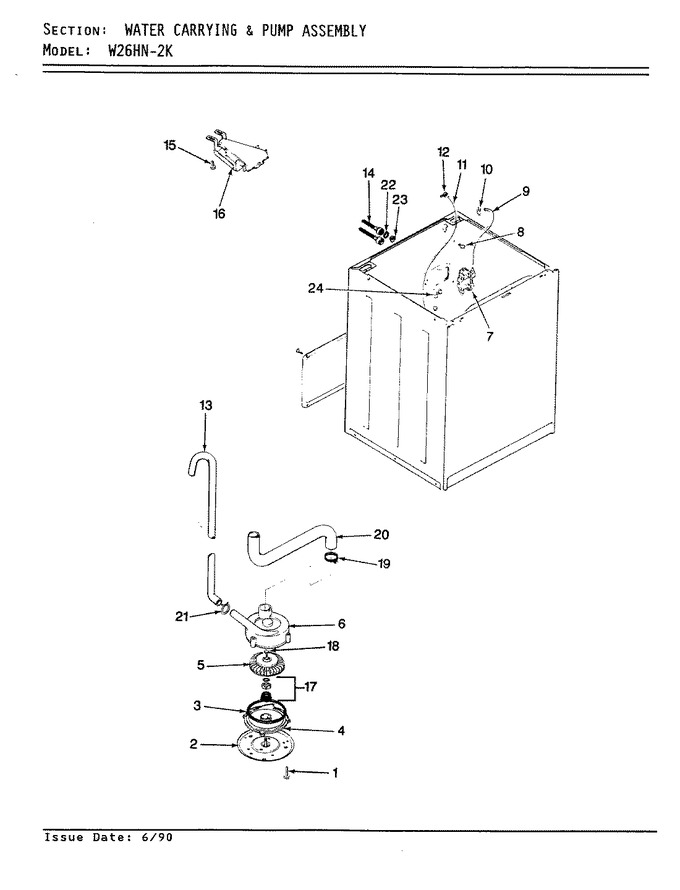

Diagram for W26HN2K
