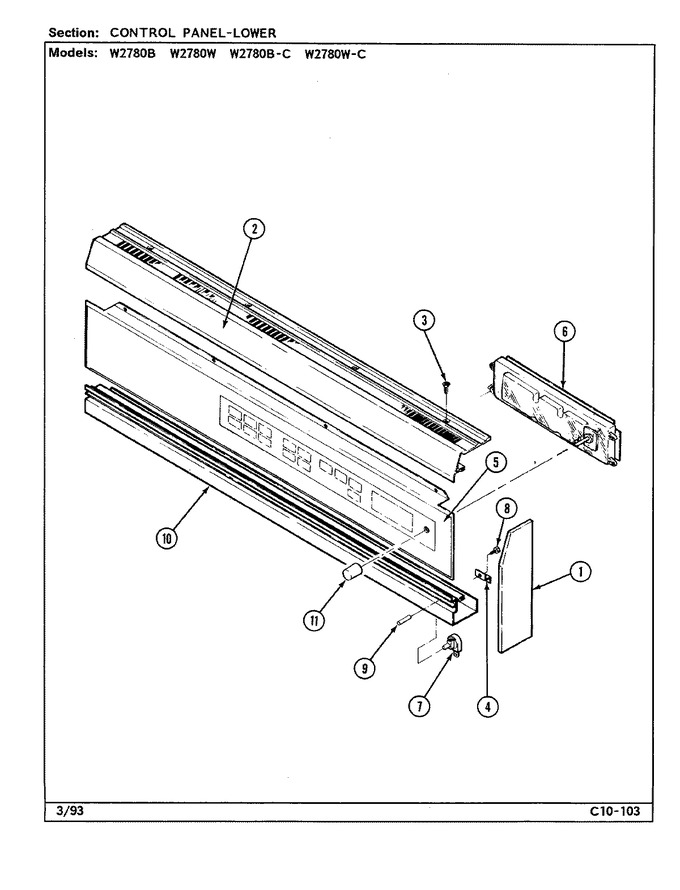

04 - Control Panel (lower)
05 - Door
06 - Internal Controls
07 - Oven
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y704691 | Cap, End (lt/blk) | 11 |
|
- | ||||
| 1 | Y704692 | Cap, End (rt/blk) | 11 |
|
- | ||||
| 2 | 04100591 | Top, Extrusion (blk) | 11 |
|
- | ||||
| 3 | 704714 | Screw, Trim | 11 |
|
- | ||||
| 4 | Y04100264 | Timer, Electronics | 11 |
|
- | ||||
| 4 | 701609 | Angle, Attachment | 11 |
|
- | ||||
| 5 | 704704 | Harness, Wire (j2) | 11 |
|
- | ||||
| 5 | Y04100037 | Panel, Back Assembly | 11 |
|
- | ||||
| 7 | 704730 | Bracket, Switch | 11 |
|
- | ||||
| 7 | 704797 | Switch, Push (blk) | 11 |
|
- | ||||
| 8 | WP12990527 | Screw (Replaces: Y708955) | 11 |
|
Immediately | $ 7.15 | |||
| 9 | 704798 | Extension, Switch (blk) | 11 |
|
- | ||||
| 10 | 704688 | Extrusion, Bottom | 11 |
|
- | ||||
| 11 | 04100038 | Plate, End Cap | 11 |
|
- | ||||
| 11 | OU2780UA | Manual, Use & Care | 11 |
|
- | ||||
| 11 | WP7711P492-60 | Knob, Clock (blk) (Replaces: Y703910) | 11 |
|
$ 12.13 |
