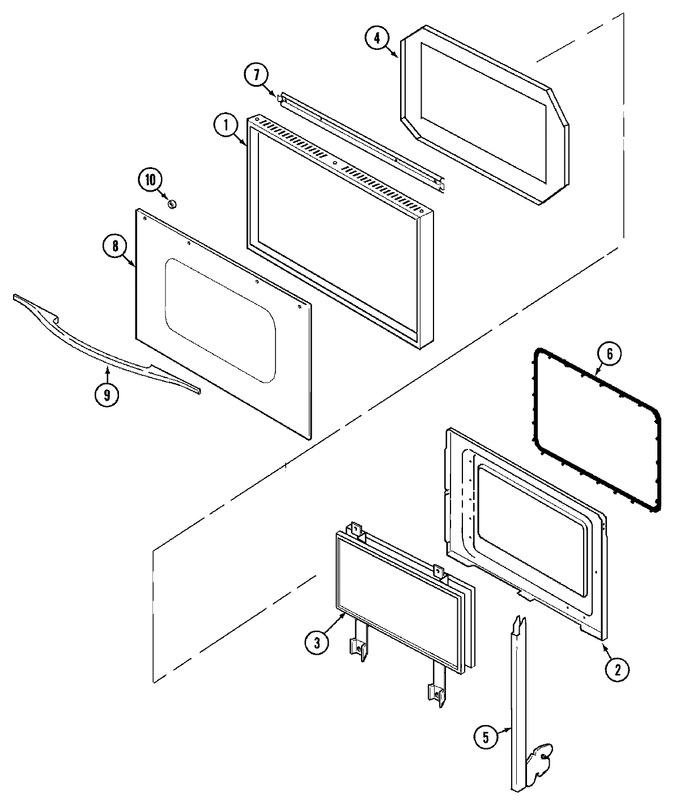

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPY706189 | Screw (Replaces: Y706189) | 11 |
|
Immediately | $ 6.47 | |||
| 1 | 71001829 | Frame, Door (blk) | 11 |
|
- | ||||
| 2 | WP210720 | Rivet (Replaces: 701662) | 11 |
|
$ 12.14 | ||||
| 2 | 71001831 | Plate, Latch | 11 |
|
- | ||||
| 2 | 71001190 | Liner, Oven Door (30`` W.o.) | 11 |
|
- | ||||
| 2 | 71002967 | Liner, Oven Door | 14 |
|
- | ||||
| 3 | 74009648 | Glass Assy/frm Nla Use74009648 (Replaces: 71001871) | 11 |
|
$ 158.75 | ||||
| 4 | 71001839 | Insulation, Door (side) | 11 |
|
- | ||||
| 4 | 71001840 | Retainer, Insulation | 11 |
|
- | ||||
| 4 | 71001838 | Insulation, Door (btm) | 11 |
|
- | ||||
| 5 | WP74008014 | Hinge, Door (Replaces: 71001832) | 11 |
|
Immediately | $ 129.55 | |||
| 6 | WP71001841 | Seal, Door (Replaces: 71001841) | 11 |
|
Immediately | $ 160.14 | |||
| 7 | 71001837 | Gusset | 11 |
|
- | ||||
| 8 | 71001833 | Glass, Door (blk) | 11 |
|
- | ||||
| 9 | 71001835 | Handle, Door (blk) | 11 |
|
- | ||||
| 10 | 701643 | Nut, Push In | 11 |
|
- |
