SELECT A DIAGRAM

01 - Blower/air Inlet & Water Level Float


02 - Cabinet Assembly


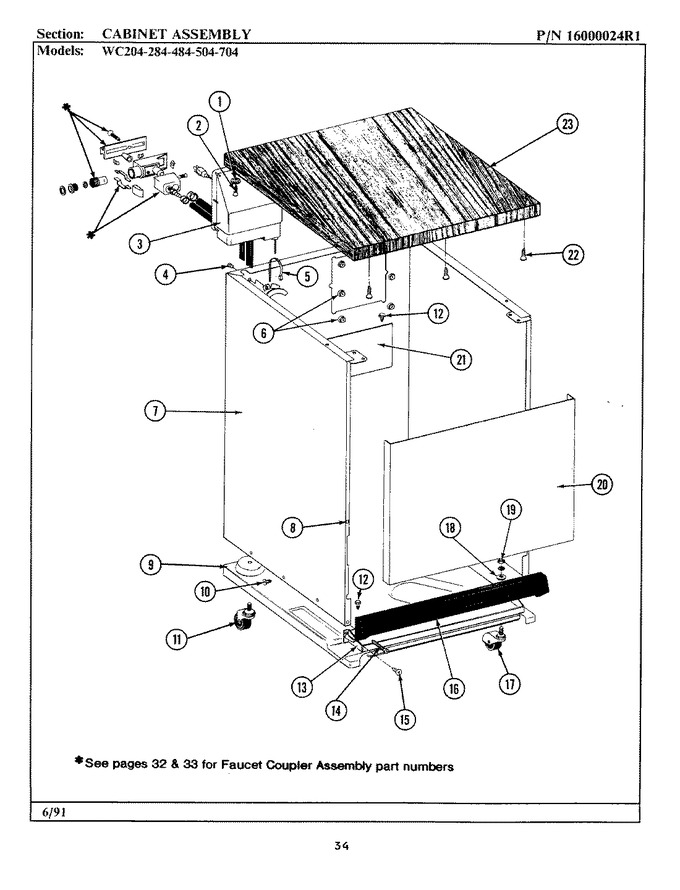

03 - Control Panel (wc284)


04 - Conversion Kit


05 - Door Assembly


06 - Door Assembly-latch & Rinse Dispenser


07 - Faucet Adapter Kit (inside Threaded)


08 - Faucet Adapter Kit (outside Threaded)


09 - Faucet Adapter Kit (unthreaded)


10 - Faucet Coupler


11 - Front Panel & Access Panel


12 - Installation Accessories-section 1 Of 2


13 - Installation Accessories-section 2 Of 2


14 - Pump & Motor Assembly


15 - Racks


16 - Tub


17 - Tub Assembly


18 - Tub Support (left)


19 - Tub Support (right)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	911017		Spacer Washer	00	Appelez-nous	-
2	910993		Screw	00	Appelez-nous	-
3	900632		Retainer For Faucet Coupler	00	Appelez-nous	-
4	WP210720		Rivet   (Replaces: 210720)	00			$ 12.14
5	911020		Cable Strap	00	Appelez-nous	-
6	910854		Palnut For Coupler Retainer	00	Appelez-nous	-
7	901121		Cabinet-white	00	Appelez-nous	-
8	911858		Screw	00	Appelez-nous	-
8	910309		Washer	00	Appelez-nous	-
9	Y911219		Frame, Base	00	Appelez-nous	-
9	910814		Strain Relief	00	Appelez-nous	-
10	213007		Screw, Cabinet	00			$ 10.99
11	900043		Caster, 2 Inch	00	Appelez-nous	-
12	WP4312464		Screw   (Replaces: 912197)	00			$ 6.26
13	911409		Front Caster Support	00	Appelez-nous	-
14	WP3-24004-109		Screw For Toe Board   (Replaces: 910955)	00			$ 7.25
15	W11233072		Screw   (Replaces: 910647)	00		Immediately	$ 12.62
16	911897		Panel, Toe	00	Appelez-nous	-
17	901979		Pair Of 9-475 Casters	00	Appelez-nous	-
18	WP348197		Washer   (Replaces: 911119)	00			$ 6.47
19	Y052734		Nut	00	Appelez-nous	-
20	912455		Insulation, Door	00	Appelez-nous	-
20	902793		Front Panel Cmplt (white)	00	Appelez-nous	-
21	911630		Cord Barrier-wc Models	00	Appelez-nous	-
22	911858		Screw	00	Appelez-nous	-
23	900709		Wood Top	00	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
