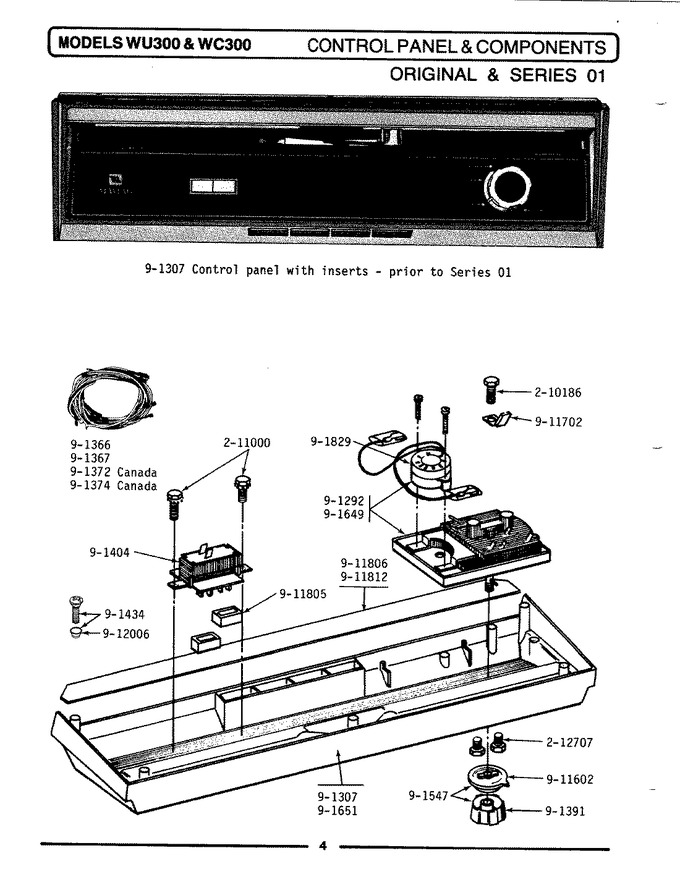

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP489128		Screw, Ground Wire To Base--na   (Replaces: 210186)	00			$ 9.79
2	WP8281227		Screw,hex Head (brake Drum)   (Replaces: 211000)	00			$ 9.40
3	W11684507		Screw   (Replaces: 212707)	00			$ 12.23
4	901292CP		Timer   (Replaces: 901292)	00	Appelez-nous	-
5	901307		Control Panel With Inserts	00	Appelez-nous	-
7	901367		Wire Harness	00	Appelez-nous	-
8	901372		Wire Harness-canada	00	Appelez-nous	-
10	901391		Timer Knob With Insert	00	Appelez-nous	-
11	901404		Control Switch, 2 Button	00	Appelez-nous	-
12	901434		Screw And Washer Assembly	00	Appelez-nous	-
13	901547		Timer Knob And Dial-chrome	00	Appelez-nous	-
14	901649CP		Timer   (Replaces: 901649)	01	Appelez-nous	-
15	901651		Control Panel With Inserts	00	Appelez-nous	-
16	901829		Timer Motor	00	Appelez-nous	-
17	911602		Timer Indicator Dial-chrome	00	Appelez-nous	-
18	911702		Ground Receptacle	00	Appelez-nous	-
19	911805		Button For Switch	00	Appelez-nous	-
20	911806		Filler Strip-f/control Pane	00	Appelez-nous	-
21	911812		Fastener	00	Appelez-nous	-
22	912006		Washer	00	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
