SELECT A DIAGRAM

01 - Blower/air Inlet & Water Level Float


02 - Cabinet Assembly

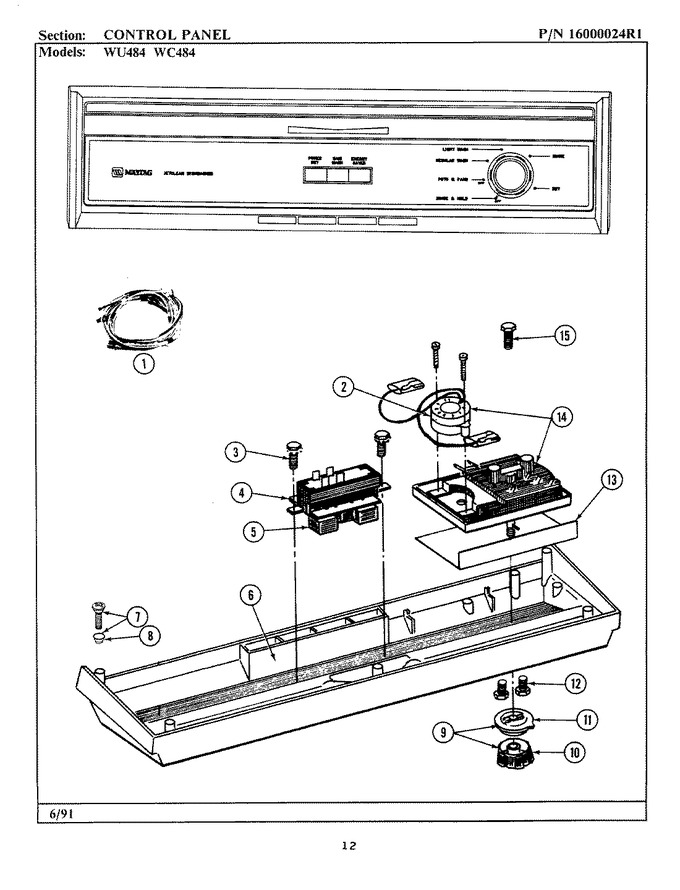

03 - Control Panel (wc484)


04 - Conversion Kit


05 - Door Assembly


06 - Door Assembly-latch & Rinse Dispenser


07 - Faucet Adapter Kit (inside Threaded)


08 - Faucet Adapter Kit (outside Threaded)


09 - Faucet Adapter Kit (unthreaded)


10 - Faucet Coupler


11 - Front Panel & Access Panel


12 - Installation Accessories-section 1 Of 2


13 - Installation Accessories-section 2 Of 2


14 - Pump & Motor Assembly


15 - Racks


16 - Tub


17 - Tub Assembly


18 - Tub Support (left)


19 - Tub Support (right)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	902434		Sub Harness	00	Appelez-nous	-
1	903033		Wire Harness	01	Appelez-nous	-
1	903032		Wire Harness	01	Appelez-nous	-
1	902781		Wire Harness	00	Appelez-nous	-
1	902780		Wire Harness	00	Appelez-nous	-
2	901829		Timer Motor	00	Appelez-nous	-
3	WP8281227		Screw,hex Head (brake Drum)   (Replaces: 211000)	00			$ 9.40
4	902295		Control Switch	00	Appelez-nous	-
5	912253		Button For Switch	00	Appelez-nous	-
6	902759		Control Panel Assy	00	Appelez-nous	-
7	901434		Screw And Washer Assembly	00	Appelez-nous	-
8	912006		Washer	00	Appelez-nous	-
9	EB680		Timer Knob & Dial   (Replaces: 902332)	00			$ 49.95
10	902299		Timer Knob With Insert	00	Appelez-nous	-
11	911602		Timer Indicator Dial-chrome	00	Appelez-nous	-
12	W11684507		Screw   (Replaces: 212707)	00			$ 12.23
13	912002		Barrier For Timer	00	Appelez-nous	-
14	902476CP		Timer   (Replaces: 902476)	00	Appelez-nous	-
15	WP489128		Screw, Ground Wire To Base--na   (Replaces: 210186)	00			$ 9.79

    View Diagram in Separate Window       Print Part List
