SELECT A DIAGRAM

01 - Blower/air Inlet & Water Level Float


02 - Cabinet Assembly


03 - Control Panel (wc504)


04 - Conversion Kit


05 - Door Assembly


06 - Door Assembly-latch & Rinse Dispenser


07 - Faucet Adapter Kit (inside Threaded)


08 - Faucet Adapter Kit (outside Threaded)


09 - Faucet Adapter Kit (unthreaded)


10 - Faucet Coupler


11 - Front Panel & Access Panel


12 - Installation Accessories-section 1 Of 2


13 - Installation Accessories-section 2 Of 2


14 - Pump & Motor Assembly


15 - Racks


16 - Tub


17 - Tub Assembly


18 - Tub Support (left)


19 - Tub Support (right)

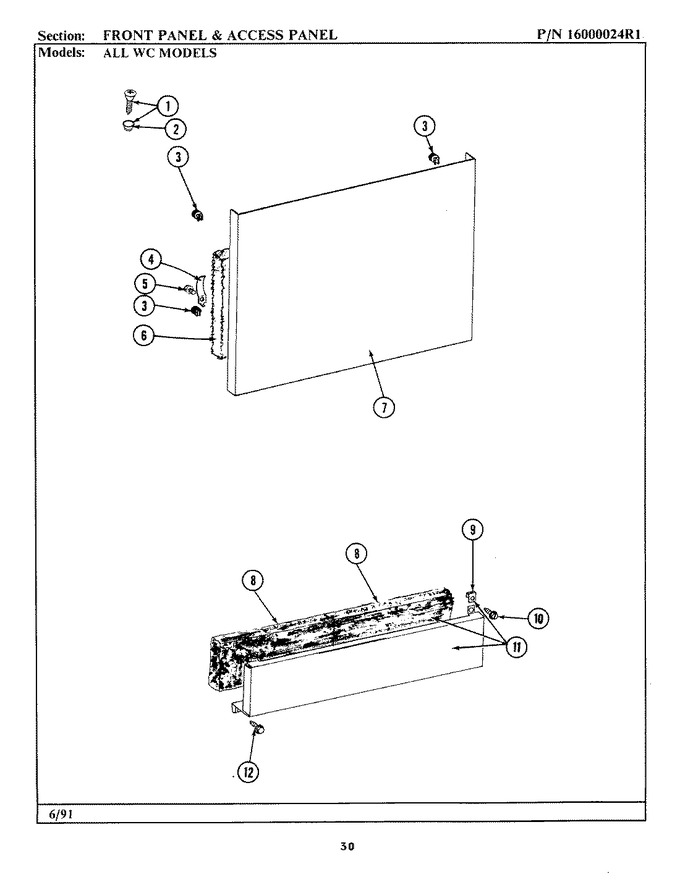

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	901433		Screw And Washer Assembly	00	Appelez-nous	-
2	912006		Washer	00	Appelez-nous	-
3	911845		Nylon Grommet	00	Appelez-nous	-
4	911875		Grounding Clip	00	Appelez-nous	-
5	WP4312464		Screw   (Replaces: 912197)	00			$ 6.26
6	912455		Insulation, Door	00	Appelez-nous	-
7	902793		Front Panel Cmplt (white)	00	Appelez-nous	-
8	912457		Insulation, Access Panel	00	Appelez-nous	-
9	911763		U Type Fastener	00	Appelez-nous	-
10	911814		Screw	00	Appelez-nous	-
11	903852		Access Panel Assy. (white)	00	Appelez-nous	-
12	W11233072		Screw   (Replaces: 910647)	00		Immediately	$ 12.62
