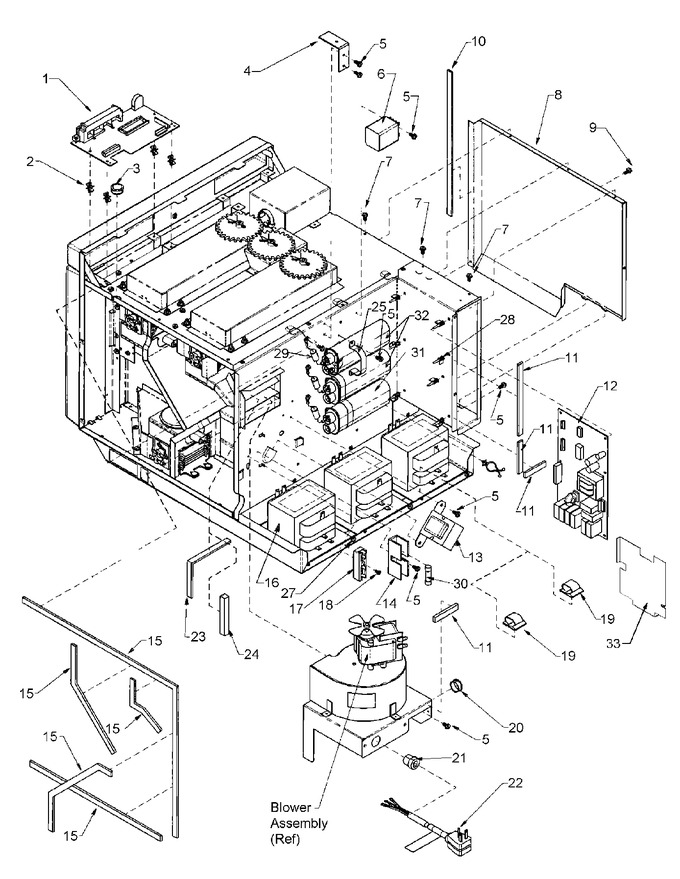

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 000 | 10902941 | Wire, Jumper No.6 |
|
- | |||||
| 000 | 10993301 | Harness, Xfmr |
|
- | |||||
| 000 | 10993401 | Harness-hv |
|
- | |||||
| 000 | 12496001 | Harness, Oven |
|
- | |||||
| 001 | 12261712 | Lv Board |
|
- | |||||
| 002 | M0585505 | Support |
|
- | |||||
| 003 | 12164101 | Grommet-rubber |
|
- | |||||
| 004 | 10853001 | Brkt, Wire Support |
|
- | |||||
| 005 | WP489349 | Screw-sm (Replaces: M0216515) |
|
Immediately | $ 7.09 | ||||
| 006 | C8873931 | Relay-power |
|
- | |||||
| 007 | M0231717 | Screw, Tf |
|
- | |||||
| 008 | NLA | Duct-exhaust |
|
- | |||||
| 009 | 12992301 | Screw, Tf (Replaces: M0231604) |
|
$ 7.32 | |||||
| 010 | A3030301 | Gasket |
|
- | |||||
| 011 | A3030301 | Gasket |
|
- | |||||
| 012 | 10763207 | Board, H.v. |
|
- | |||||
| 013 | C8901507 | Xfmr-auto |
|
- | |||||
| 014 | 10091101 | Block-fuse |
|
- | |||||
| 015 | A3030330 | Gasket |
|
- | |||||
| 016 | 10788611 | Transformer-hv |
|
- | |||||
| 017 | B5677203 | Block-term |
|
- | |||||
| 018 | M0234117 | Screw-tr |
|
- | |||||
| 019 | WPM0104106 | Clip, Cord (Replaces: M0104106) |
|
$ 7.00 | |||||
| 020 | A3293503 | Bushing-snap |
|
- | |||||
| 021 | M0370003 | Relief-strain |
|
- | |||||
| 022 | 10098917 | Power Cord |
|
- | |||||
| 023 | A3030302 | Gasket |
|
- | |||||
| 024 | A3030311 | Gasket |
|
- | |||||
| 025 | A4055405 | Strap, Capacitor |
|
- | |||||
| 027 | WP90767 | Screw-sm (Replaces: M0216716) |
|
Immediately | $ 7.04 | ||||
| 028 | M0590602 | Support |
|
- | |||||
| 029 | WP13091701 | Rectifier (Replaces: B8383102) |
|
$ 31.71 | |||||
| 030 | M0805205 | Fuse- 30a |
|
$ 10.08 | |||||
| 031 | 10366914 | Capacitor-.85 |
|
- | |||||
| 032 | 10366916 | Capacitor-doubler (top Magnetr |
|
- | |||||
| 033 | 12421001 | Baffle, Air |
|
- |
