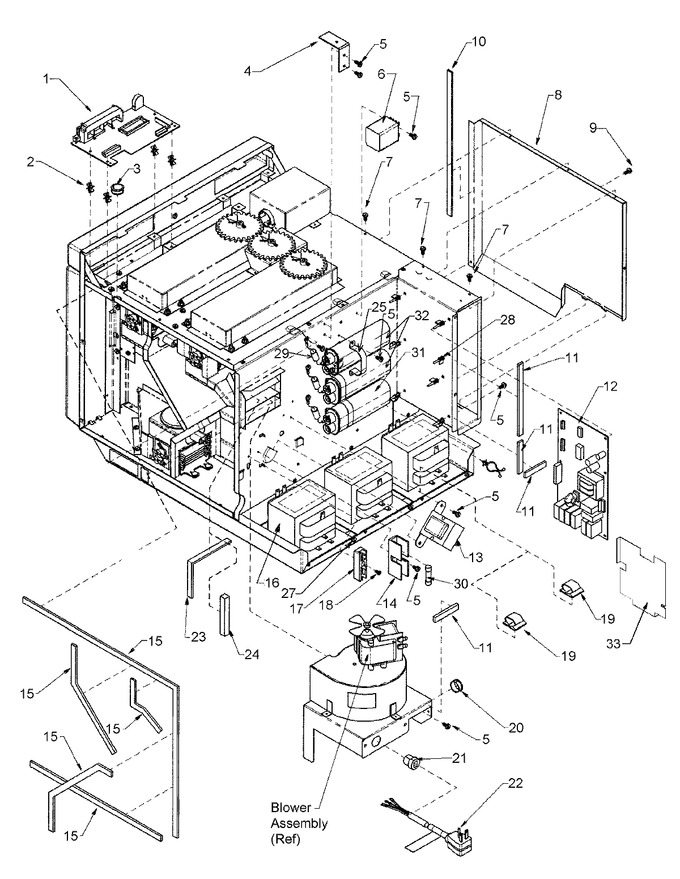

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 12496001 | Harness, Oven |
|
- | ||||||
| 10993401 | Harness, Hi Volt |
|
- | ||||||
| 10993301 | Harness, Xfmr |
|
- | ||||||
| 10902941 | Wire, Jumper No.6 |
|
- | ||||||
| 1 | 12261712 | Board, L.v. |
|
- | |||||
| 2 | M0585505 | Support |
|
- | |||||
| 3 | 12164101 | Grommet-rubber |
|
- | |||||
| 4 | 10853001 | Brkt, Wire Support |
|
- | |||||
| 5 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.09 | ||||
| 6 | C8873931 | Relay |
|
- | |||||
| 7 | M0231717 | Screw, Tf |
|
- | |||||
| 8 | R0156941 | Assy, Exh Duct |
|
- | |||||
| 9 | 12992301 | Screw, Tf (Replaces: M0231604) |
|
$ 7.32 | |||||
| 10 | A3030301 | Gasket (inch) |
|
- | |||||
| 11 | A3030301 | Gasket (inch) |
|
- | |||||
| 12 | 10763207 | Board, H.v. |
|
- | |||||
| 13 | C8901507 | Transformer, Auto |
|
- | |||||
| 14 | 10091101 | Fuse Holder |
|
- | |||||
| 15 | A3030330 | Gasket,per Ft |
|
- | |||||
| 16 | 10788611 | Transformer-hv |
|
- | |||||
| 17 | B5677203 | Terminal Block |
|
- | |||||
| 18 | M0234117 | Screw |
|
- | |||||
| 19 | WPM0104106 | Clip (Replaces: M0104106) |
|
$ 7.00 | |||||
| 20 | A3293503 | Snap Bushing |
|
- | |||||
| 21 | M0370003 | Strain Relief |
|
- | |||||
| 22 | 10098917 | Power Cord |
|
- | |||||
| 23 | A3030302 | Gasket |
|
- | |||||
| 24 | A3030311 | Gasket-per Inch |
|
- | |||||
| 25 | A4055405 | Strap, Capacitor |
|
- | |||||
| 27 | WP90767 | Screw (Replaces: M0216716) |
|
Immediately | $ 7.04 | ||||
| 28 | M0590602 | Support P-c Bd A |
|
- | |||||
| 29 | WP13091701 | Rectifier (Replaces: B8383102) |
|
$ 31.71 | |||||
| 30 | M0805205 | Fuse- 30a |
|
$ 10.08 | |||||
| 31 | 10366914 | Capacitor |
|
- | |||||
| 32 | 10366916 | Capacitor |
|
- | |||||
| 33 | 12421001 | Baffle, Air |
|
- |
