Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 M0231717 Screw, Tf Appelez-nous -
1 59001225 Touch Panel-top Appelez-nous -
2 M0234114 Screw Appelez-nous -
2 12502401 Board,display Xxx Appelez-nous -
3 M0231717 Screw, Tf Appelez-nous -
3 59001226 Touch Panel-side Appelez-nous -
4 59001114 Switch, Interlock Appelez-nous -
4 M0216517 Screw Appelez-nous -
5 12164101 Grommet-rubber Appelez-nous -
6 M0229916 Screw T.c Appelez-nous -
6 B5684124 Cutout-thermal Magnetron Appelez-nous -
7 10489402 Magnetron-t Appelez-nous -
8 WP13091701 Rectifier   (Replaces: B8383102) Special Order $ 31.71

8 WP489349 Screw   (Replaces: M0216515) In-Stock Immediately $ 7.09

9 59001128 Bushing, Snap Appelez-nous -
10 59001160 Capacitor-.69 Special Order $ 18.43

10 WP489349 Screw   (Replaces: M0216515) In-Stock Immediately $ 7.09

10 A4055405 Strap, Capacitor Appelez-nous -
11 59001674 Transformer-hv Appelez-nous -
12 WP90767 Screw   (Replaces: M0216716) In-Stock Immediately $ 7.04

13 WPM0104106 Clip   (Replaces: M0104106) Special Order $ 7.00

14 A3030301 Gasket (inch) Appelez-nous -
15 B5667304 Wire Clip Appelez-nous -
16 10172901Q Snubber Assembly Appelez-nous -
17 59001120 Net-board,hv Amana Prog-wdyrc2 Appelez-nous -
18 M0590602 Support P-c Bd A Appelez-nous -
19 M0325401 Bushing,terminal Appelez-nous -
20 B5795306 Thermal Cutout Appelez-nous -
20 WP488234 Screw   (Replaces: M0234422) Special Order $ 6.07

21 M0308801 Cap, Protective-threaded (red) Appelez-nous -
22 M0231617 Screw,tf Appelez-nous -
23 10847601 Plate, Partition Appelez-nous -
23 WPW10001160 Screw   (Replaces: M0200316) Special Order $ 8.86

24 12QBP0508 Kit, Triac Assy   (Replaces: R0157373) Special Order $ 27.14

24 WP489349 Screw   (Replaces: M0216515) In-Stock Immediately $ 7.09

25 59001675 Transformer-auto Appelez-nous -
25 WP489349 Screw   (Replaces: M0216515) In-Stock Immediately $ 7.09

26 M0322202 Tie Wire Appelez-nous -
27 12492202 Relay Appelez-nous -
28 B8371401 Receptacle, Lamp Appelez-nous -
28 M0231717 Screw, Tf Appelez-nous -
29 8009 Lamp 41w   (Replaces: 10664502) In-Stock Immediately $ 16.80


    View Diagram in Separate Window     Print Icon   Print Part List

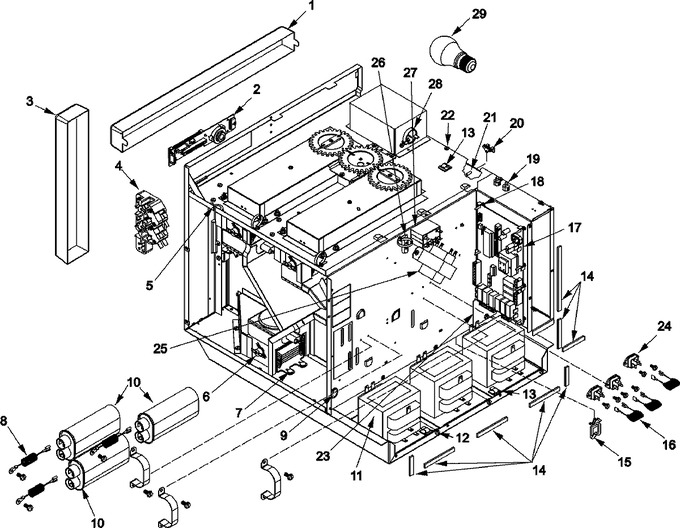

Diagram for WDYRC25J (BOM: P1330119M)
