SELECT A DIAGRAM

Diagram for 01 - Door
01 - Door

Diagram for 02 - Electrical Components
02 - Electrical Components

Diagram for 03 - Fuses, Antennas, Blower, Ducts,
03 - Fuses, Antennas, Blower, Ducts,

No Diagram Image Available
04 - Supplemental Information

Diagram for 05 - Tray, Grease Shield, Cabinet,
05 - Tray, Grease Shield, Cabinet,

Diagram for 06 - Wiring Information
06 - Wiring Information


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 67003392 Screw-hi Lo Y-drive Head Appelez-nous -
1 R0193574 Magnetic Y-drive Bit Appelez-nous -
2 12002103 Kit, Inner Door/window Assy Appelez-nous -
3 D7683729 Weldment-inner Door (blk) Appelez-nous -
4 C8961811 Hinge-door Appelez-nous -
5 WP90767 Screw   (Replaces: M0216716) In-Stock Immediately $ 7.04

6 WP3388228 Screw Xxx   (Replaces: M0216703) Special Order $ 6.26

7 A3263904 Gasket Appelez-nous -
8 R0156918 Outer Door/lens Retainer Assy Special Order $ 328.06

9 12360703 Plug, Button (blk) Appelez-nous -
10 M0208943 Set Screw Appelez-nous -
11 12490901 Handle, Door Appelez-nous -
12 M0208342 Screw, Set Appelez-nous -
13 M0310305 Plug, Button (wht) Appelez-nous -
14 C8893502 Spring, Door Latch Appelez-nous -
15 12002757 Latch Kit   (Replaces: R0000282) Special Order $ 116.60

16 A4539601 Pop Rivet Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

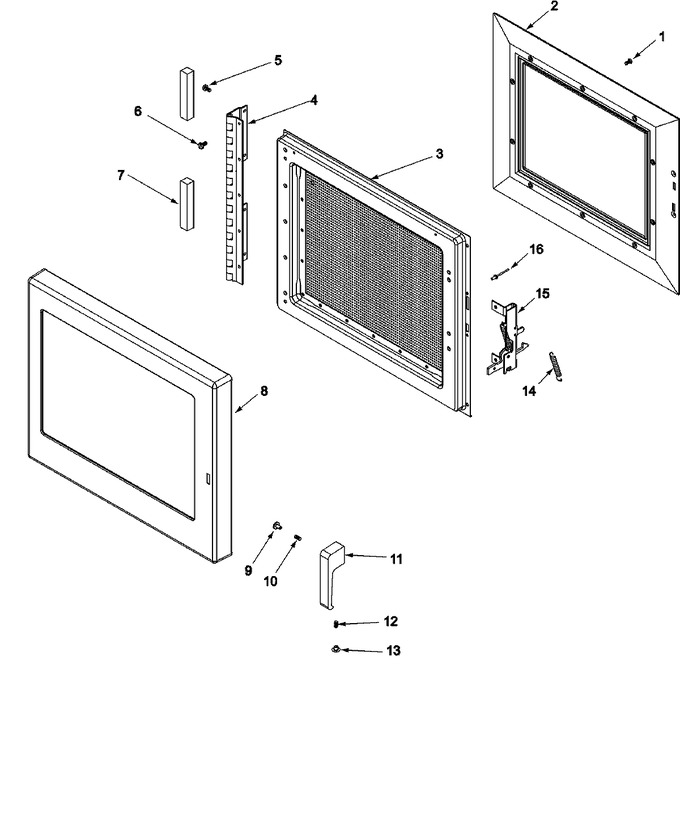

Diagram for WDYRC25J2 (BOM: P1331408M)
