01 - Cabinet


02 - Control Panel/housing-drawer


03 - Door


04 - Supplemental Information


05 - Tub Back


06 - Tub Front


07 - Wiring Information

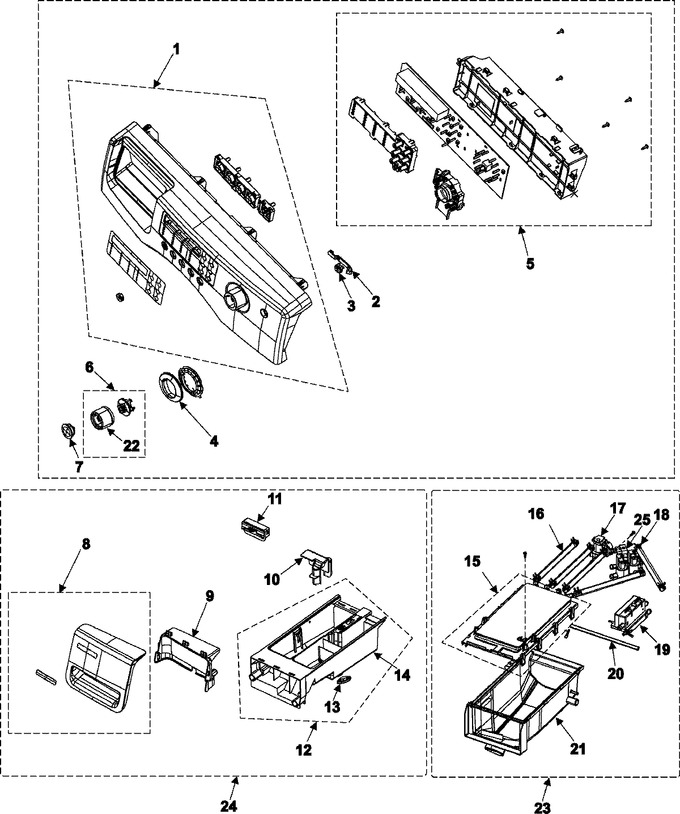

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DC97-10513E		Assy-s.panel Control		Appelez-nous	-
2	DC66-00413A		Lever-power				$ 5.57
3	DC64-01105A		Button-push(p)				$ 7.73
4	Y00000000		See Note Window Encoder Currently Unavailable		Appelez-nous	-
5	W10126759		Assy Pcb Parts(m)		Appelez-nous	-
6	DC97-10526A		Assy-knob Encoder;frontier,bby				$ 32.17
7	DC64-01132A		Button-encoder		Appelez-nous	-
8	555555		Assy-panel Drawer ----sna   (Replaces: DC97-10961A)				$ 151.94
9	DC64-01113A		Handle-drawer				$ 15.36
10	DC67-00121B		Cap-rinse				$ 25.56
11	DC61-01171A		Guide-liquid				$ 27.34
12	DC97-08774B		Assy-s.drawer			Immediately	$ 62.83
13	DC63-00516A		Cover-detergent		Appelez-nous	-
14	DC61-01170A		Body-drawer				$ 90.55
15	DC97-08800A		Assy-s Housing Drawer			Immediately	$ 55.63
16	DC67-00051B		Hose-drawer				$ 45.79
17	DC62-30312J		Valve-water			Immediately	$ 104.27
18	WP596669		Clamper Hose;sew-dr605,sk5,-,-   (Replaces: DC65-00008A)			Immediately	$ 7.56
19	555555		Assy-guide Water   (Replaces: DC97-10417A)				$ 151.94
20	DC67-00089F		Hose-water				$ 3.66
21	555555		Housing-drawer(l);wf326law,pp   (Replaces: DC61-01167C)				$ 151.94
22	DC64-01084A		Knob-encoder(1);k4-pjt,abs,-,-		Appelez-nous	-
23	DC97-07125D		Assy-housing Drawer				$ 181.80
24	DC97-10335D		Assy-drawer				$ 142.69
25	DC62-30314K		Valve-water			Immediately	$ 90.28
