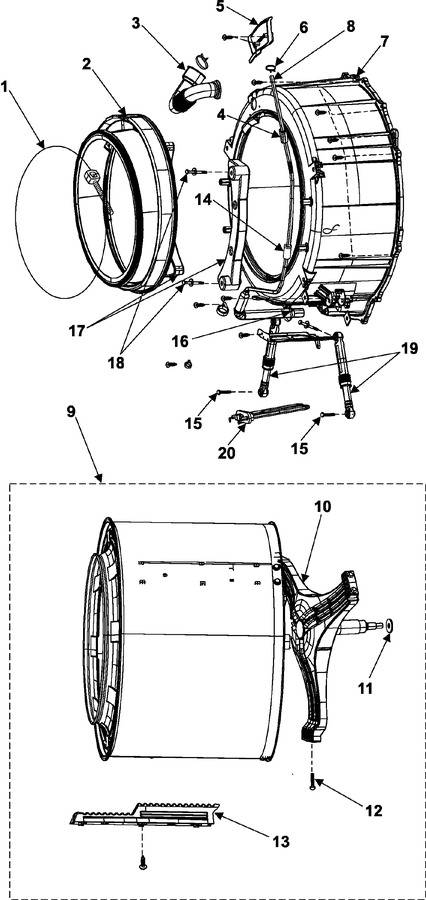

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DC97-04981D | Assy-clamp Diaphram;wings-pjt |
|
Immediately | $ 22.64 | ||||
| 2 | DC64-00802A | Door-diaphragm |
|
Immediately | $ 168.26 | ||||
| 3 | DC67-00122A | Hose Drawer Tub;gw-pjt,edpm,-, |
|
$ 74.73 | |||||
| 4 | DC63-10003E | Sponge-hose Air |
|
- | |||||
| 5 | DC61-01172A | Guide-water |
|
$ 8.48 | |||||
| 6 | DC61-70029C | Spring-clip |
|
$ 0.85 | |||||
| 7 | DC97-08650A | Assy-semi Tub Front;wings-pjt |
|
$ 176.65 | |||||
| 8 | DC67-00124A | Hose-pressure;gw-pjt,epdm |
|
$ 63.06 | |||||
| 9 | 555555 | Assy-drum (Replaces: DC97-10337A) |
|
$ 151.94 | |||||
| 10 | 555555 | Assy-flange Shaft (Replaces: DC97-06986A) |
|
$ 151.94 | |||||
| 11 | 555555 | Washer-wave;sk5,-,id35,od45, (Replaces: 6031-001523) |
|
$ 151.94 | |||||
| 12 | 555555 | Bolt-flange;m8,l38.5,pass (Replaces: 6011-001491) |
|
$ 151.94 | |||||
| 13 | DC66-00434A | Drum-lifter |
|
$ 25.43 | |||||
| 14 | DC63-10002D | Sponge-harness |
|
$ 0.85 | |||||
| 15 | Y00000000 | See Note Bolt-hex Currently Unavailable |
|
- | |||||
| 16 | WP285655 | Clamper Hose;ts85-pjt,hswr,-,- (Replaces: DC65-00009A) |
|
Immediately | $ 7.55 | ||||
| 17 | DC67-00139A | Weight-balancer(f) |
|
$ 128.57 | |||||
| 18 | DC97-02412F | Assy-bolt |
|
- | |||||
| 19 | DC66-00343C | Damper-shock;gw-pjt |
|
$ 29.83 | |||||
| 20 | DC47-00006G | Heater |
|
$ 129.29 |
