02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - Unit Parts
06 - Compressor Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

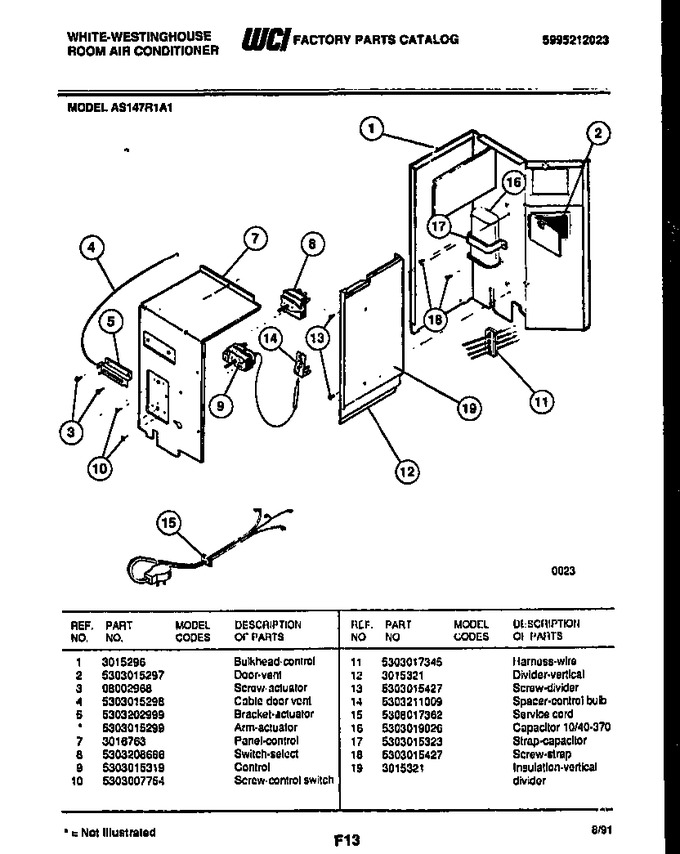

| 1 | 3015296 | Bulkhead - Control |
|
- | |||||
| 2 | 5303015297 | Door-vent |
|
- | |||||
| 3 | 08002968 | Screw-actuator |
|
- | |||||
| 4 | 5303015298 | Cable-door Vent |
|
- | |||||
| 5 | 5303202999 | Bracket-actuator |
|
- | |||||
| 7 | 3016763 | Panel - Control |
|
- | |||||
| 8 | 5303208666 | Switch, Select |
|
- | |||||
| 9 | 5303015319 | Control |
|
- | |||||
| 10 | 5303007754 | Screw-control Switch |
|
- | |||||
| 11 | 5303017345 | Harness-wire |
|
- | |||||
| 12 | 3015321 | Divider - Vertical |
|
- | |||||
| 13 | 5303015427 | Screw - Divider |
|
- | |||||
| 14 | 5303211009 | Spacer-control Bulb |
|
- | |||||
| 15 | 5308017362 | Service Cord |
|
- | |||||
| 16 | 5303019026 | Capacitor 10/40-370 |
|
- | |||||
| 17 | 5303015323 | Strap-capacitor |
|
- | |||||
| 18 | 5303015427 | Screw-strap |
|
- | |||||
| 19 | 3015321 | Insulation-vertical Divider |
|
- | |||||
| 5A | 5303015299 | Arm-actuator (non-illustrated) |
|
- |
