SELECT A DIAGRAM

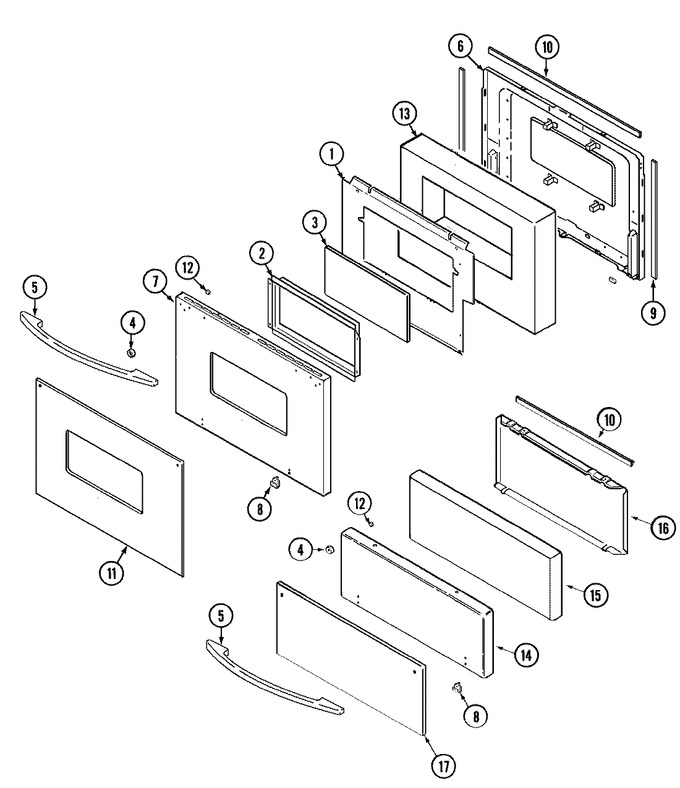

01 - Door (upper & Lower)
02 - Gas Controls
03 - Oven/body
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F102-51 | Baffle, Upper Door | 11 |
|
- | ||||
| 1 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 11 |
|
Immediately | $ 6.85 | |||
| 2 | 3603F013-80 | Frame, Window----na | 11 |
|
- | ||||
| 3 | 7902P386-60 | Glass, Inner | 11 |
|
- | ||||
| 4 | 74003986 | Spacer, Glass (Replaces: 790260) | 11 |
|
$ 13.08 | ||||
| 4 | 8010P073-60 | Spacer, Handle | 15 |
|
- | ||||
| 5 | 74001959 | Handle, Door (blk) | 11 |
|
- | ||||
| 6 | 74001851 | Lining, Door | 11 |
|
- | ||||
| 7 | 5304537073 | Tape, Dbl. Sided (wht) (Replaces: 71002092) | 15 |
|
$ 0.75 | ||||
| 7 | 74004158 | Panel, Door (blk) | 19 |
|
- | ||||
| 7 | 74001862 | Panel, Door (blk) | 11 |
|
- | ||||
| 7 | 7101P276-60 | Screw (blk) | 11 |
|
- | ||||
| 8 | 7112P093-60 | Clip, Glass (blk) | 11 |
|
$ 12.67 | ||||
| 8 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 11 |
|
$ 15.94 | ||||
| 9 | 7212P003-60 | Seal, Oven Door | 11 |
|
$ 46.94 | ||||
| 10 | WP7212P006-60 | Seal, Door (horizontal) (Replaces: 7212P006-60) | 11 |
|
$ 105.81 | ||||
| 11 | 74001970 | Glass, Door | 11 |
|
- | ||||
| 12 | WP3400029 | Nut, Kep (Replaces: 74001972) | 11 |
|
Immediately | $ 6.98 | |||
| 13 | 7002P015-60 | Insulation, Door | 11 |
|
- | ||||
| 14 | 74001936 | Panel, Door (lwr-blk) | 11 |
|
- | ||||
| 14 | 7101P276-60 | Screw (blk) | 11 |
|
- | ||||
| 14 | 74003897 | Panel, Door (lrw-blk) | 15 |
|
- | ||||
| 14 | 5304537073 | Tape, Dbl. Sided (wht) (Replaces: 71002092) | 15 |
|
$ 0.75 | ||||
| 14 | 74004160 | Panel, Door (blk) | 19 |
|
- | ||||
| 15 | 7002P067-60 | Insulation, Broiler Door | 11 |
|
- | ||||
| 16 | 74003896 | Lining, Door (lwr) | 15 |
|
- | ||||
| 16 | 74001937 | Lining, Door (lwr) | 11 |
|
- | ||||
| 17 | 74001982 | Glass, Broiler Door | 11 |
|
- |
