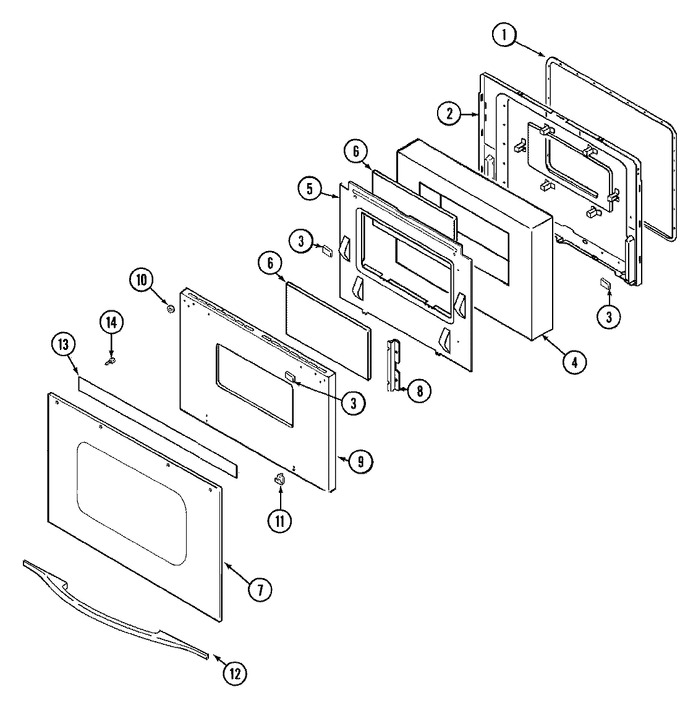

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door
04 - Gas Controls
05 - Internal Controls
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10162384 | Gasket, Door (Replaces: 7201P046-60) | 10 |
|
Immediately | $ 77.61 | |||
| 2 | 74001058 | Lining, Door | 10 |
|
- | ||||
| 2 | 74003244 | Lining, Door | 12 |
|
- | ||||
| 3 | 8010P085-60 | Spacer, Rubber | 10 |
|
- | ||||
| 4 | 74001842 | Insulation, Door | 10 |
|
- | ||||
| 5 | 74001843 | Baffle, Door | 10 |
|
- | ||||
| 5 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 6 | 74001841 | Glass, Inner | 10 |
|
- | ||||
| 7 | 71002811 | Glass, Oven (wht) | 10 |
|
- | ||||
| 8 | 74001844 | Retainer, Glass | 10 |
|
- | ||||
| 8 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 9 | 71002809 | Panel, Door (wht) | 10 |
|
- | ||||
| 9 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 10 | 74003986 | Spacer, Glass (Replaces: 8010P016-60) | 10 |
|
$ 13.08 | ||||
| 11 | WP98008544 | Screw (1/2``-wht) (Replaces: 7101P373-60) | 10 |
|
$ 11.89 | ||||
| 11 | 7112P094-60 | Clip, Glass (wht) | 10 |
|
$ 7.19 | ||||
| 12 | 71002813 | Handle, Oven Door (wht) | 10 |
|
- | ||||
| 12 | 5304537073 | Tape, Dbl. Sided (wht) (Replaces: 71002092) | 10 |
|
$ 0.74 | ||||
| 13 | 8270P090-60 | Tape, Foil (3`` Wide) | 10 |
|
- | ||||
| 14 | WP98008544 | Screw (1/2``-wht) (Replaces: 7101P373-60) | 10 |
|
$ 11.89 |
