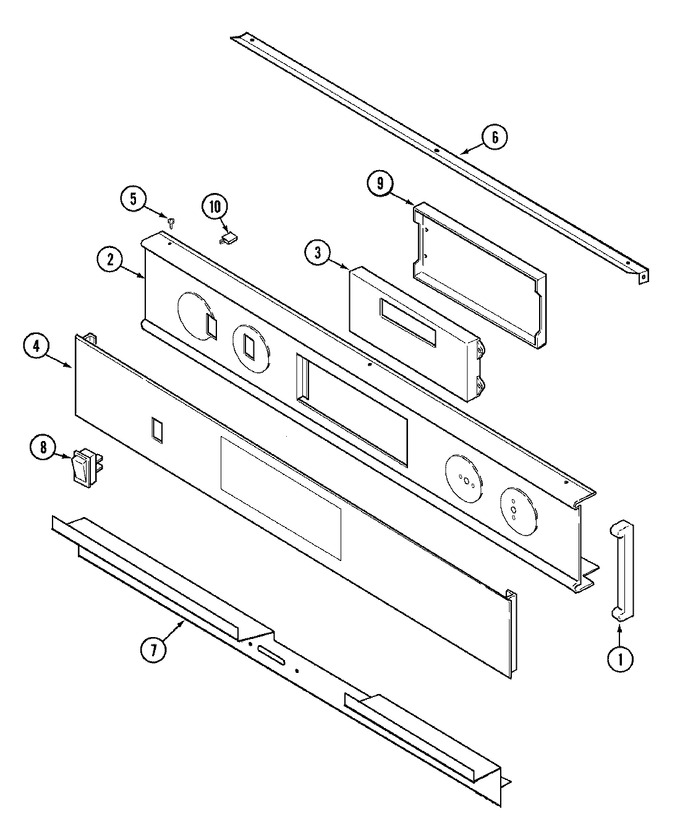

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	71001794		End Cap, Panel (blk)	11	Appelez-nous	-
2	74004706		Panel, Control (blk)	15	Appelez-nous	-
2	71002121		Panel, Control (blk)	11	Appelez-nous	-
3	74004708		Clock	15	Appelez-nous	-
3	71002123		Clock	11	Appelez-nous	-
4	71002223		Switch, Membrane (blk)	11	Appelez-nous	-
4	12001405		Tape Supt (control Panel) Kit	10	Appelez-nous	-
4	71003575		Switch, Membrane Asy (blk)	15	Appelez-nous	-
5	WP12990527		Screw   (Replaces: Y708955)	11		Immediately	$ 7.15
6	71001945		Support, Control Panel	11	Appelez-nous	-
7	71001946		Trim, Control Panel (blk)	11	Appelez-nous	-
7	W11233072		Screw (no.8ab)   (Replaces: 71001183)	11		Immediately	$ 12.62
8	7403P067-60		Switch, Oven Light (blk)   (Replaces: 71002136)	11			$ 91.35
9	71002139		Bracket, Clock	11	Appelez-nous	-
9	Y705143		Insulator	11	Appelez-nous	-
10	WP71002286		Breaker, Circuit (20 Amp)   (Replaces: 71002286)	11			$ 70.95
NI	71002130		Harness, Relay Board	11	Appelez-nous	-
NI	71002126		Harness, Main Control	11	Appelez-nous	-
NI	71002216		Manual, Use & Care	11	Appelez-nous	-
NI	71003574		Manual, Use & Care	15	Appelez-nous	-
NI	16000326		Guide, Quick Ref - Jenn-air	11	Appelez-nous	-
NI	71002129		Harness, Door Lock (dbl)	11	Appelez-nous	-
NI	71002128		Harness, Door Switch (dbl)	11	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
