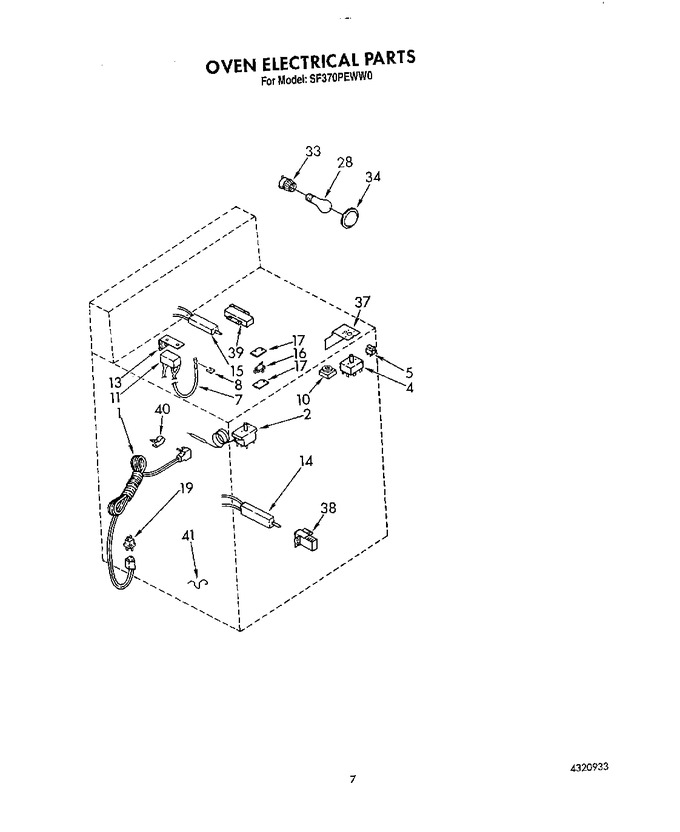

05 - Oven Electrical


06 - Oven Door And Drawer


07 - Backguard, Lit/optional


08 - Cooktop


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	786578		Cord, Power		Appelez-nous	-
2	786744		Screw, 6-32 X 1/4 (2)		Appelez-nous	-
2	4314978		Thermostat, Oven		Appelez-nous	-
4	4179076		Switch, Selector		Appelez-nous	-
5	786325		Switch, Light		Appelez-nous	-
7	4315260		Ignitor, Top (l.h.)		Appelez-nous	-
7	4315261		Ignitor, Top (r.h.)		Appelez-nous	-
8	WPY0070927		Mounting Clip, Electrode (2)   (Replaces: 786580)				$ 6.85
10	786259		Screw, 4-40 X 5/8 (2)		Appelez-nous	-
10	786260		Nut		Appelez-nous	-
10	4320326		Switch, Top Burner Actuator		Appelez-nous	-
11	786323		Module, Spark		Appelez-nous	-
13	4320892		Bracket, Spark Module		Appelez-nous	-
14	786324		Ignitor, Bake   (Replaces: 4179150)			Immediately	$ 60.68
15	814269		Ignitor, Broil   (Replaces: 4320913)				$ 184.01
15	786753		Nut (2)		Appelez-nous	-
15	786751		Screw, 4-40 X 5/8 (2)		Appelez-nous	-
16	786669		Switch, Oven Door Latch		Appelez-nous	-
17	786380		Insulator, Switch		Appelez-nous	-
19	786570		Plug, Male		Appelez-nous	-
28	8009		Lamp, Oven   (Replaces: 786742)			Immediately	$ 16.80
33	WP74011278		Light Socket   (Replaces: 4321075)				$ 101.56
34	WP74011278		Light Lens   (Replaces: 4320959)				$ 101.56
37	786689		Insulator (2)		Appelez-nous	-
38	786801		Bracket, Bake Ignitor		Appelez-nous	-
39	786802		Bracket, Broiler Ignitor		Appelez-nous	-
40	4157298		Clamp		Appelez-nous	-
41	4179338		Clip, Wire		Appelez-nous	-
