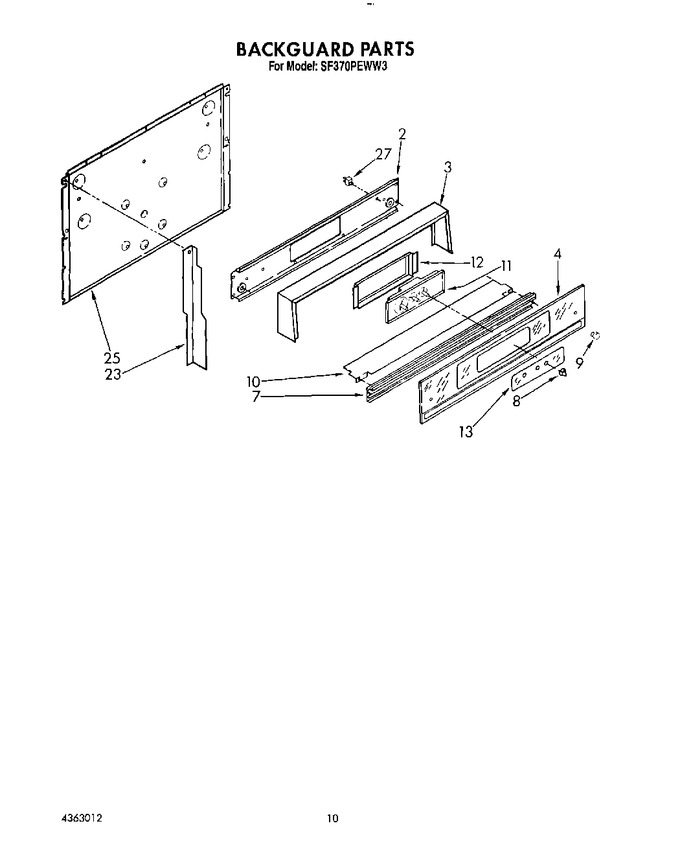

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	4362898		Panel, Control Mounting (white)		Appelez-nous	-
2	4362993		Panel, Control Mounting (almond)		Appelez-nous	-
3	4320900		Frame		Appelez-nous	-
4	4320932		Decorative Inlay		Appelez-nous	-
7	786694		Trim, Lower		Appelez-nous	-
8	786434		Knob, Clock (3)		Appelez-nous	-
9	4315798		Lens, Indicator Light		Appelez-nous	-
10	786456		Shield, Heat		Appelez-nous	-
11	4320904		Clock		Appelez-nous	-
12	786454		Plate, Clock Mounting		Appelez-nous	-
13	786453		Glass, Timer		Appelez-nous	-
23	4362925		Support, Control Panel (2) (r.h.)		Appelez-nous	-
23	4362924		Support, Control Panel (2) (l.h.)		Appelez-nous	-
25	4362559		Plate, Rear Cover		Appelez-nous	-
27	786306		Light, Indicator		Appelez-nous	-
	LIT4363012		List, Repair Parts		Appelez-nous	-
	LIT4315757		Instructions, Installation		Appelez-nous	-
	LIT4320793		Guide, Use & Care		Appelez-nous	-
