SELECT A DIAGRAM

01 - Internal Oven


02 - External Oven


03 - Manifold


04 - Oven Electrical, Literature


05 - Oven Door And Drawer


06 - Backguard

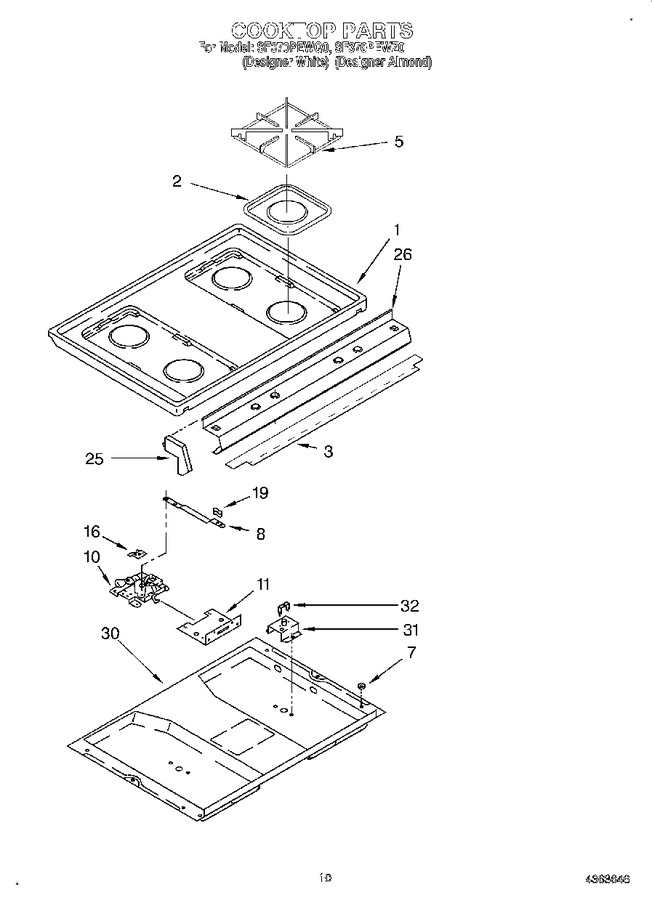

07 - Cooktop


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4363634		Top, Main (almond)		Appelez-nous	-
1	4363439		Top, Main (white)		Appelez-nous	-
2	WPY0060872		Bowl, Chrome (4)   (Replaces: 4320776)				$ 25.26
3	4363027		Filler, Control Panel		Appelez-nous	-
5	4363227		Grate, Top ((almond Model) Burner (4))		Appelez-nous	-
5	4363138		Grate, Top ((white Model))		Appelez-nous	-
7	786342		Spacer, Nylon (4)		Appelez-nous	-
8	4363599		Handle, Latch (almond)		Appelez-nous	-
8	4363598		Handle, Latch (white)		Appelez-nous	-
8	4363528		Handle, Latch (screw)		Appelez-nous	-
10	786303		Latch Assembly		Appelez-nous	-
10	4363526		Screw		Appelez-nous	-
10	4363528		Screw		Appelez-nous	-
11	4315774		Bracket, Latch Mounting		Appelez-nous	-
16	4362570		Bracket, Switch		Appelez-nous	-
16	786752		Screw		Appelez-nous	-
16	4363526		Screw		Appelez-nous	-
19	4320977		Knob, Latch Handle (white)		Appelez-nous	-
19	4363597		Knob, Latch Handle (almond)		Appelez-nous	-
25	4363473		End Cap White (right Side)		Appelez-nous	-
25	4363472		End Cap White (left Side)		Appelez-nous	-
25	4363474		End Cap Almond (left Side)		Appelez-nous	-
25	4363475		End Cap Almond (right Side)		Appelez-nous	-
26	4363574		Panel, Control (almond)		Appelez-nous	-
26	4363573		Panel, Control (white)		Appelez-nous	-
30	4362919		Burner Box		Appelez-nous	-
31	786684		Bracket, Top (2)		Appelez-nous	-
32	786754		Bracket, Electrode (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
