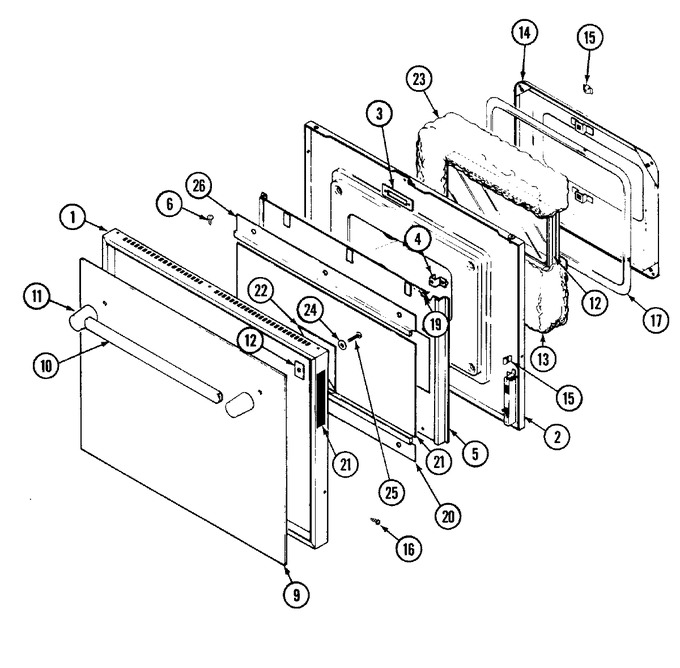

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 04100544 | Frame, Door (blk) | 11 |
|
- | ||||
| 2 | Y04100543 | Liner, Door | 11 |
|
- | ||||
| 3 | Y712010 | Plate, Latch (upper) | 11 |
|
- | ||||
| 4 | WP210720 | Rivet (Replaces: 701662) | 11 |
|
$ 12.14 | ||||
| 5 | 701652 | Bracket, Stand-off | 11 |
|
- | ||||
| 6 | 04100542 | Baffle, Door | 11 |
|
- | ||||
| 9 | 704712 | Glass (lower) | 11 |
|
- | ||||
| 10 | Y704225 | Handle | 11 |
|
- | ||||
| 11 | Y704224 | End Cap (blk) | 11 |
|
- | ||||
| 12 | 701648 | Window Pack | 11 |
|
- | ||||
| 13 | 704805 | Gusset----na | 11 |
|
- | ||||
| 13 | 701736 | Washer | 11 |
|
- | ||||
| 14 | 704963 | Screw | 11 |
|
- | ||||
| 15 | Y704489 | Bushing | 11 |
|
- | ||||
| 16 | 702292 | Insulation, Bottom | 11 |
|
- | ||||
| 16 | 702293 | Insulation | 11 |
|
- | ||||
| 16 | 701660 | Insulation, Top | 11 |
|
- | ||||
| 17 | 04100600 | Plug | 11 |
|
- | ||||
| 19 | Y704488 | Screw (black) | 11 |
|
- | ||||
| 20 | WPY702338 | Seal, Oven Door (Replaces: Y702338) | 11 |
|
Immediately | $ 172.53 | |||
| 21 | Y04100580 | Insert, Frame (blk)----na | 11 |
|
- | ||||
| 22 | DE81-07129A | Rivet, Accordion (Replaces: 701641) | 11 |
|
$ 128.48 | ||||
| 23 | 701643 | Nut, Push In | 11 |
|
- | ||||
| 24 | Y704820 | Glass, Baffle | 11 |
|
- | ||||
| 25 | 705404 | Clip | 11 |
|
- | ||||
| 26 | W11233072 | Screw (Replaces: Y707347) | 11 |
|
Immediately | $ 12.62 | |||
| 26 | 715870 | Screw | 11 |
|
- | ||||
| NI | Y704223 | Bumper, Button | 11 |
|
- | ||||
| NI | 703958 | Screw | 11 |
|
- | ||||
| NI | Y704819 | Retainer, Glass | 11 |
|
- | ||||
| NI | 704487 | Clip | 11 |
|
- | ||||
| NI | WPY706189 | Screw (blk) (Replaces: Y704238) | 11 |
|
Immediately | $ 6.47 |
