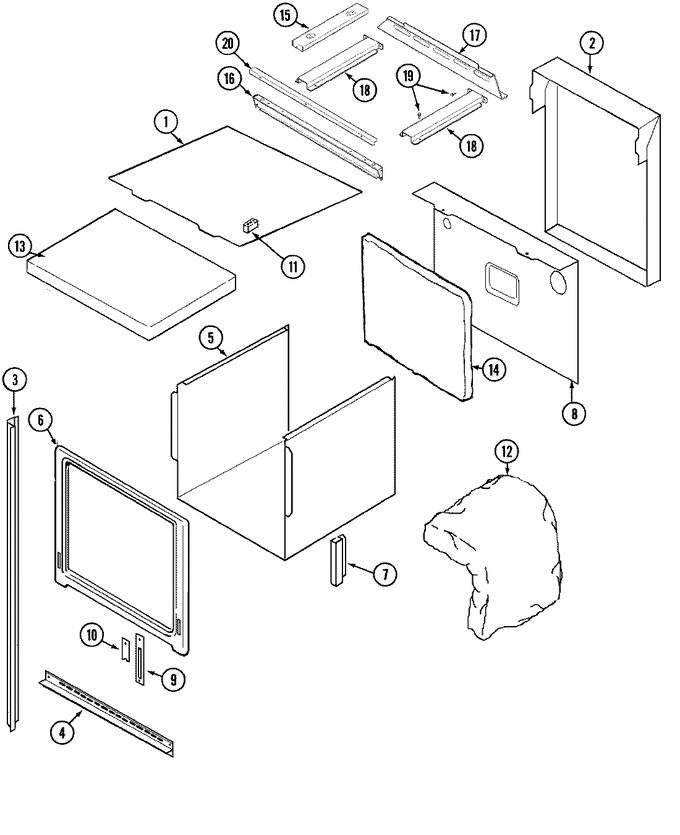

WM30460W | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Series	Availability	Ships	Price
1	71001811	Top, Oven (outer)	11	Appelez-nous	-
1	WP90767	Screw (Replaces: Y700502)	11		Immediately	$ 7.04
2	71001813	Cover, Main Back	11	Appelez-nous	-
3	71002853	Screw (wht)	10	Appelez-nous	-
3	71002750	Trim, Side (rt-wht)	11	Appelez-nous	-
3	71002751	Trim, Side (lt-wht)	11	Appelez-nous	-
4	71001827	Screw	10	Appelez-nous	-
4	71001821	Trim, Oven (lwr-wht)	11	Appelez-nous	-
5	71001814	Panel, Oven (side/btm/side)	11	Appelez-nous	-
6	71003180	Frame, Oven	13	Appelez-nous	-
6	71001189	Frame, Oven	11	Appelez-nous	-
7	WP74008015	Receptacle, Hinge Assy. (Replaces: 71001828)	11			$ 225.36
8	71001816	Back, Oven (inner)	11	Appelez-nous	-
9	71001815	Plate, Hinge Cover	11	Appelez-nous	-
10	71001812	Plate, Hinge Trap	11	Appelez-nous	-
11	701704	Outlet, Appliance	11	Appelez-nous	-
12	71001817	Insulation (wrap)	11	Appelez-nous	-
13	71001820	Insulation (top-btm)	11	Appelez-nous	-
14	71001819	Insulation (bck)	11	Appelez-nous	-
15	W10124350	Not Required Part Or See Note	15	Appelez-nous	-
15	71002523	Rail, Saddle	11	Appelez-nous	-
15	71002855	Rail, Saddle	14	Appelez-nous	-
16	71002524	Strut, Saddle (frt)	11	Appelez-nous	-
16	71002856	Strut, Saddle (frt)	14	Appelez-nous	-
16	W10124350	Not Required Part Or See Note (see M/w Mtg Section)	15	Appelez-nous	-
17	71002857	Strut, Saddle (rear)	14	Appelez-nous	-
17	W10124350	Not Required Part Or See Note (see M/w Mtg Section)	15	Appelez-nous	-
17	71002525	Strut, Saddle (rear)	11	Appelez-nous	-
18	W10124350	Not Required Part Or See Note	14	Appelez-nous	-
18	71002526	Saddle, Microwave	11	Appelez-nous	-
19	WP90767	Screw (Replaces: Y700502)	11		Immediately	$ 7.04
20	W10124350	Not Required Part Or See Note (see M/w Mtg Section)	15	Appelez-nous	-
20	71002640	Bracket, Filler	11	Appelez-nous	-
20	71002858	Bracket, Filler (wht)	14	Appelez-nous	-
