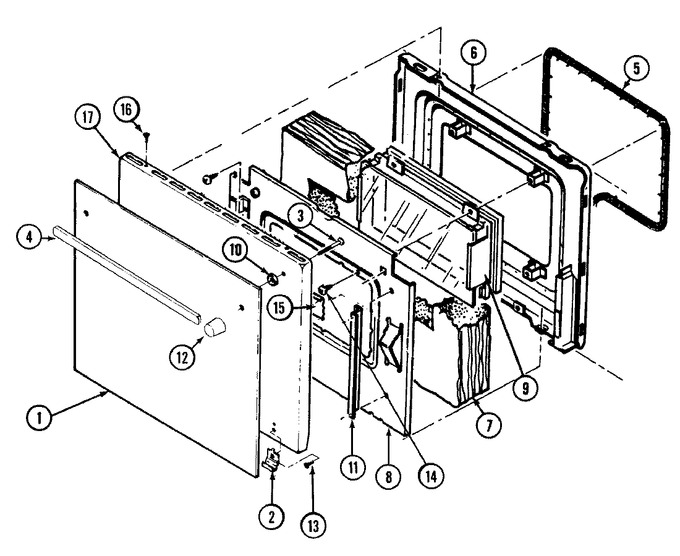

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7902P402-60		Glass, Door (wht)	11	Appelez-nous	-
1	8010P085-60		Spacer, Rubber	11	Appelez-nous	-
2	7112P094-60		Clip, Glass (wht)	11			$ 7.19
3	7101P325-60		Screw, Handle		Appelez-nous	-
3	W11233072		Screw (zinc)   (Replaces: 7101P041-60)			Immediately	$ 12.62
4	7701P085-60		Handle, Door (white)	11	Appelez-nous	-
5	WPW10162384		Gasket, Door   (Replaces: 7201P046-60)	11		Immediately	$ 77.61
6	2402W202-19		Lining, Door	11	Appelez-nous	-
7	7002P155-60		Insulation, Door	11	Appelez-nous	-
8	3601F236-51		Baffle, Door	11	Appelez-nous	-
9	7907P021-60		Window Asy.	11	Appelez-nous	-
9	3805F002-61		Clamp, Window Assy.	11	Appelez-nous	-
10	74003986		Spacer, Glass   (Replaces: 8010P016-60)	11			$ 13.08
11	3818F052-51		Channel, Air	11	Appelez-nous	-
12	7744P042-60		End Cap, Handle (wht)	11	Appelez-nous	-
13	7101P276-60		Screw (blk)	11	Appelez-nous	-
14	W11233072		Screw   (Replaces: 7101P290-60)	11		Immediately	$ 12.62
15	8270P090-60		Tape, Foil (3`` Wide)	11	Appelez-nous	-
16	W11233072		Screw (zinc)   (Replaces: 7101P041-60)	11		Immediately	$ 12.62
17	2401F117-71		Panel, Door (wht)	11	Appelez-nous	-
17	5185D273-60		Harness, Lower	11	Appelez-nous	-
