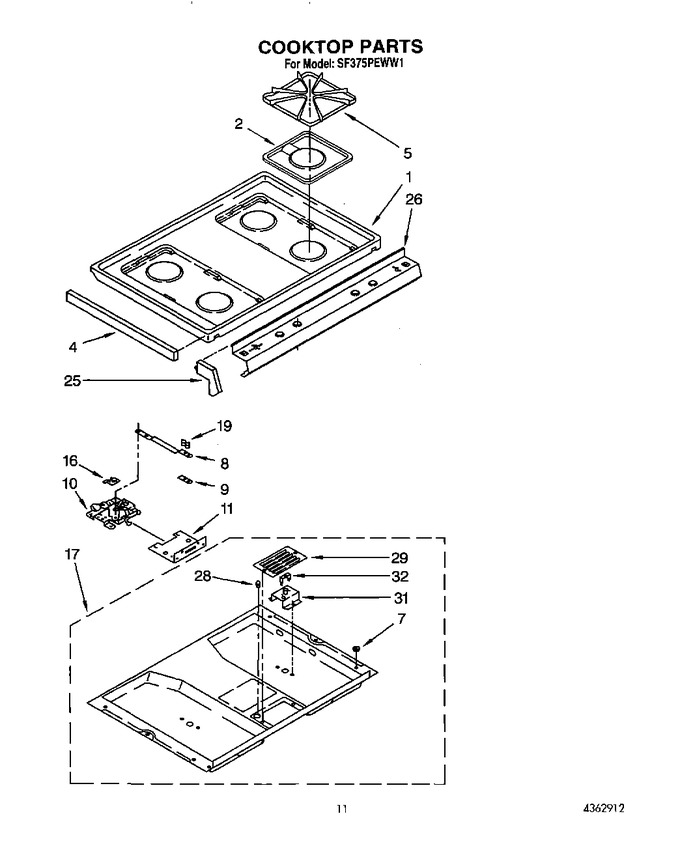

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4179072		Top, Main (almond)		Appelez-nous	-
1	4179071		Top, Main (white)		Appelez-nous	-
2	WPY0060872		Bowl, Chrome (4)   (Replaces: 4320776)				$ 25.26
4	786343		Trim, Main Top (right Side)		Appelez-nous	-
4	786344		Trim, Main Top (left Side)		Appelez-nous	-
5	4314875		Grate, Top Burner (4)		Appelez-nous	-
7	786342		Spacer, Nylon (4)		Appelez-nous	-
8	4320864		Handle, Latch		Appelez-nous	-
9	786690		Support, Handle		Appelez-nous	-
10	786303		Latch Assembly		Appelez-nous	-
11	4315774		Bracket, Latch Mounting		Appelez-nous	-
16	786381		Bracket, Switch		Appelez-nous	-
16	786752		Screw, 4-40 (2)		Appelez-nous	-
17	WP965173		Screw, 8 X 3/8 (6)   (Replaces: 786745)			Immediately	$ 9.65
17	4320886		Burner Box		Appelez-nous	-
19	4315663		Knob, Latch Handle		Appelez-nous	-
25	786393		End Cap (right)		Appelez-nous	-
25	786394		End Cap (left)		Appelez-nous	-
26	4320918		Panel, Control		Appelez-nous	-
28	786309		Spud, Orfice		Appelez-nous	-
29	4320377		Plate, Cover		Appelez-nous	-
31	786684		Bracket, Top (2)		Appelez-nous	-
32	786754		Bracket, Electrode (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
