SELECT A DIAGRAM
02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - System Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:

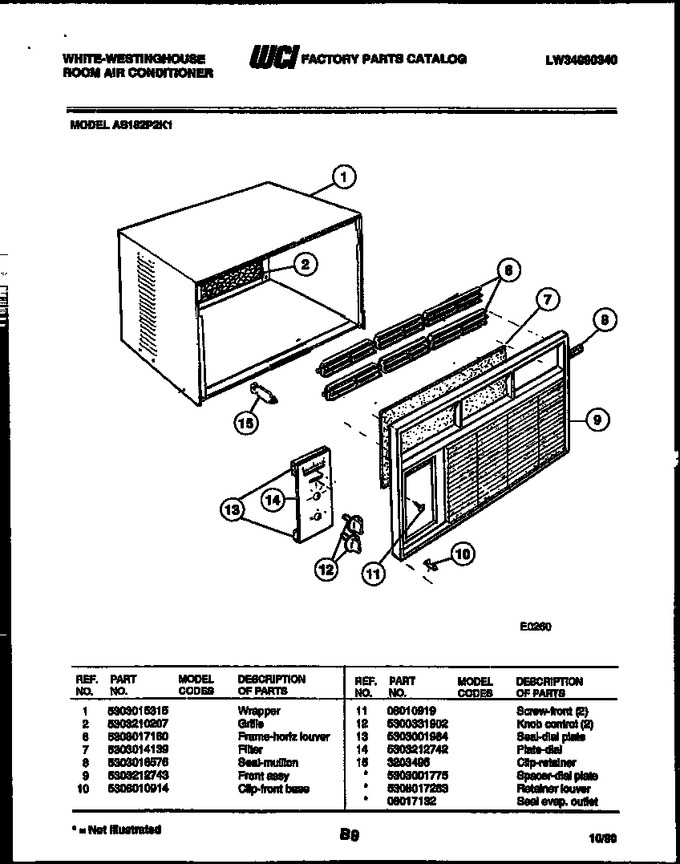

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303015315 | Wrapper |
|
- | |||||
| 2 | 5303210207 | Grille |
|
- | |||||
| 6 | 5308017160 | Frame-horiz. Louver |
|
- | |||||
| 7 | 5303014139 | Filter |
|
- | |||||
| 8 | 5303018576 | Seal-mullion |
|
- | |||||
| 9 | 5303212743 | Front Assy |
|
- | |||||
| 10 | 5308010914 | Clip-front/base |
|
- | |||||
| 11 | 08010919 | Screw-front (2) |
|
- | |||||
| 12 | 5300331902 | Knob-control (2) |
|
- | |||||
| 13 | 5303001984 | Seal - Dial Plate |
|
- | |||||
| 14 | 5303212742 | Plate-dial |
|
- | |||||
| 15 | 3203495 | Clip-retainer |
|
- | |||||
| *36984 | 08017132 | Seal Evap. Outlet |
|
- | |||||
| *36984 | 5303001775 | Spacer - Dial Plate |
|
- | |||||
| *36984 | 5308017263 | Retainer Louver |
|
- |
