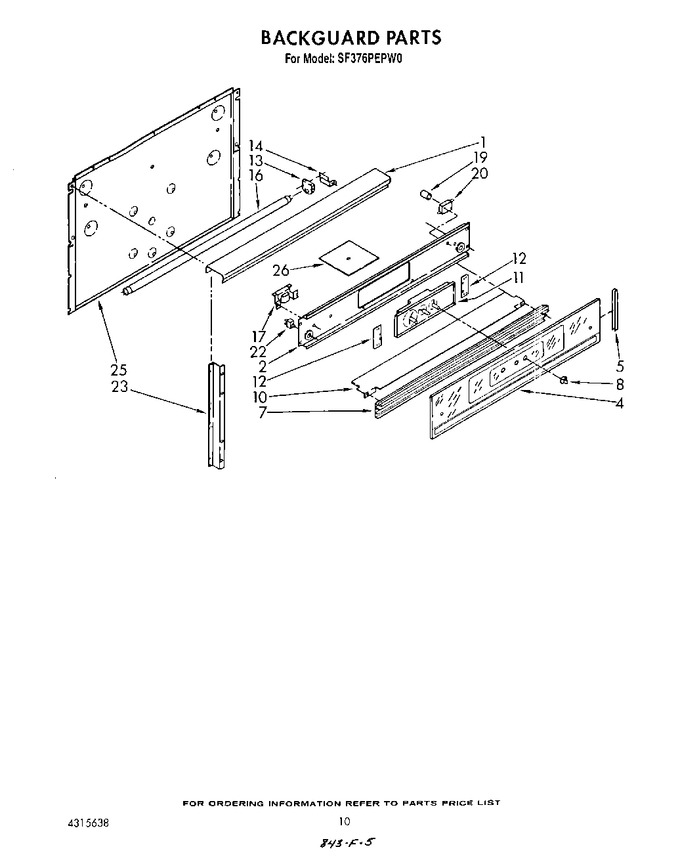

07 - Backguard , Lit/optional


08 - Cook Top


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4315680		Trim, Top		Appelez-nous	-
1	4315681		End Cap L.h.		Appelez-nous	-
1	4315682		End Cap R.h.		Appelez-nous	-
2	4315679		Panel, Control Mounting		Appelez-nous	-
4	4315667		Glass, Control Panel		Appelez-nous	-
5	4315669		Channel, Glass (2)		Appelez-nous	-
7	4315668		Trim, Lower		Appelez-nous	-
8	4315670		Knob, Clock (3)		Appelez-nous	-
10	4179336		Shield, Heat		Appelez-nous	-
11	4315671		Clock		Appelez-nous	-
12	786706		Plate, Clock Mounting		Appelez-nous	-
13	786536		Socket, Fluorescent Light		Appelez-nous	-
14	786702		Support, Lamp Socket (right Side)		Appelez-nous	-
14	786701		Support, Lamp Socket (left Side)		Appelez-nous	-
16	786539		Lamp, Fluorescent		Appelez-nous	-
17	786540		Ballast, 60 Hz.		Appelez-nous	-
19	786541		Starter, Fluorescent Light		Appelez-nous	-
20	786542		Socket, Starter		Appelez-nous	-
22	786433		Light, Indicator (2)		Appelez-nous	-
23	786458		Support, Control Panel (2)		Appelez-nous	-
25	786455		Plate, Rear Cover		Appelez-nous	-
26	4315034		Insulation		Appelez-nous	-
	LIT786302		Guide, Cooking		Appelez-nous	-
	LIT786300		Instructions, Installation		Appelez-nous	-
	LIT786295		Guide, Use & Care		Appelez-nous	-
	LIT4315638		List, Repair Parts		Appelez-nous	-
