SELECT A DIAGRAM

01 - Blower/air Inlet & Water Level Float

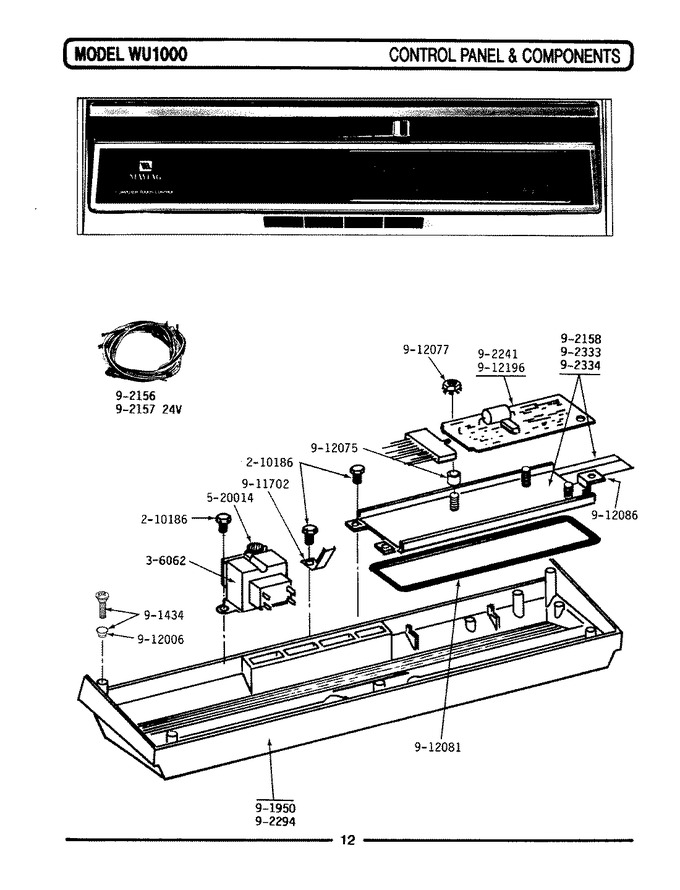

02 - Control Panel & Components (wu1000)


03 - Door Assembly


04 - Front Panel & Access Panels


05 - Installation Accessories


06 - Pump Assembly


07 - Track & Rack Assembly


08 - Tub Assembly & Components


09 - Tub Support (left) Frame & Water Valves


10 - Tub Support (right) Base Frame & Motor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP489128		Screw, Ground Wire To Base--na   (Replaces: 210186)	00			$ 9.79
2	WP3177991		Screw   (Replaces: Y251119)	00		Immediately	$ 6.47
3	306062		Transformer	00	Appelez-nous	-
4	520014		Varistor	00	Appelez-nous	-
5	901434		Screw And Washer Assembly	00	Appelez-nous	-
6	901950		Control Panel With Inserts	00	Appelez-nous	-
9	902156		Wire Harness	00	Appelez-nous	-
10	902157		Wire Harness	00	Appelez-nous	-
11	902158		Touch Pad Assembly	00	Appelez-nous	-
12	902241		Microprocessor Board Assm	00	Appelez-nous	-
13	902294		Control Panel With Inserts	01	Appelez-nous	-
14	WG02F05434		Control Switch   (Replaces: 902333)	00			$ 93.59
15	902334		Touch Pad Assembly	01	Appelez-nous	-
17	911702		Ground Receptacle	00	Appelez-nous	-
18	912006		Washer	00	Appelez-nous	-
19	912075		Circuit Board Spacer	00	Appelez-nous	-
20	M0282005		Locknut   (Replaces: 912077)	00			$ 7.07
21	912081		Control Bezel (du598b)	00	Appelez-nous	-
24	912086		Clip,speed	00	Appelez-nous	-
25	912196		Light Shield	00	Appelez-nous	-
NI	WP4312464		Screw   (Replaces: 912197)	00			$ 6.26
NI	901962		Relay (5 Contact)	00	Appelez-nous	-
NI	911231		Base, Frame	00	Appelez-nous	-
NI	912082		Bracket, Relays	00	Appelez-nous	-
NI	912085		Label For Relay Bracket	00	Appelez-nous	-
NI	901961		Relay (4 Contact)	00	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
