01 - Blower/air Inlet & Water Level Float

Diagram for 02 - Control Panel & Components
02 - Control Panel & Components

Diagram for 03 - Door Assembly
03 - Door Assembly

Diagram for 04 - Front Panel & Access Panel
04 - Front Panel & Access Panel

No Diagram Image Available
05 - Installation Accessories

Diagram for 06 - Pump Assembly
06 - Pump Assembly

Diagram for 07 - Track & Rack Assembly
07 - Track & Rack Assembly

Diagram for 08 - Tub Assembly & Components
08 - Tub Assembly & Components

Diagram for 09 - Tub Supports, Base Frame, Motor & Valves
09 - Tub Supports, Base Frame, Motor & Valves


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP489128 Screw, Ground Wire To Base--na   (Replaces: 210186) 00 Special Order $ 9.79

2 W11684507 Screw   (Replaces: 212707) 00 Special Order $ 12.23

3 901391 Timer Knob With Insert 00 Appelez-nous -
4 901402 Control Panel With Inserts 00 Appelez-nous -
5 901421 Timer 00 Appelez-nous -
6 901434 Screw And Washer Assembly 00 Appelez-nous -
7 901548 Timer Knob And Dial-almond 00 Appelez-nous -
8 901804 Wire Harness-wu101 00 Appelez-nous -
9 901805 Wire Harness-canada 00 Appelez-nous -
10 901829 Timer Motor 00 Appelez-nous -
11 911691 Timer Indicator Dial-almond 00 Appelez-nous -
12 911702 Ground Receptacle 00 Appelez-nous -
13 912002 Barrier For Timer 00 Appelez-nous -
14 912006 Washer 00 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

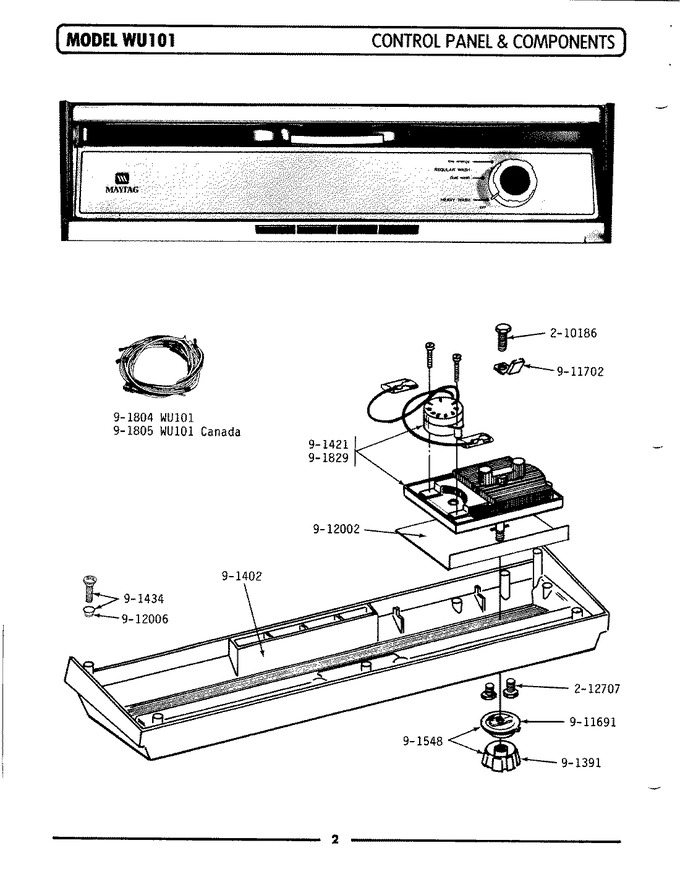

Diagram for WU101
